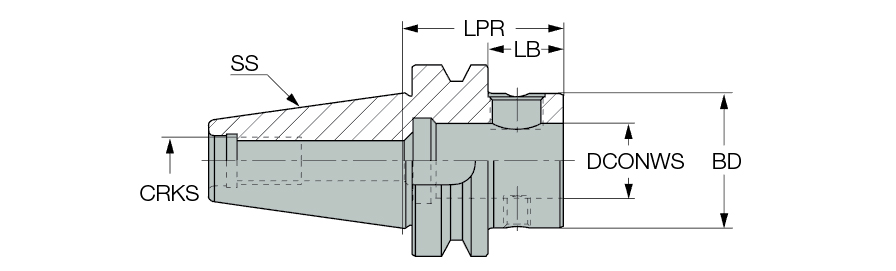

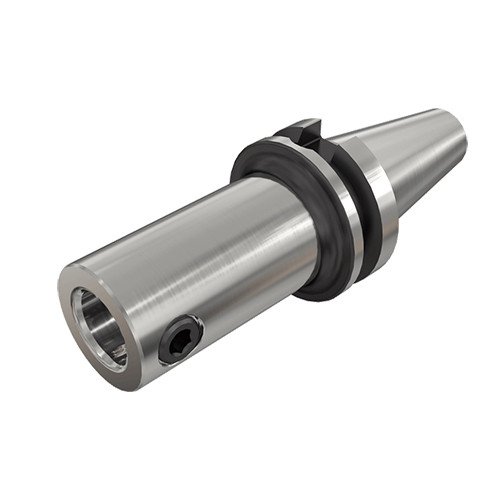

BT40 CF4-S
Adapter; ; 0.984″ Hole Dia. ; 40 Shank Size ; 2.047″ LPR ; 1.752″ Body Dia. ; 0.984″ Body Length ; 4.622″ OAL
| Protruding Length (LPR) | 2.047″ | Weight of Item (WT) | 2.38 Lbs |
| Connection Diameter Workpiece Side (DCONWS) | 0.984″ | Body Material | Steel |
| Body Diameter (BD) | 1.752″ | Connection Retention Knob Thread Size (CRKS) | M16 |
| Body Length (LB) | 0.984″ | Shank Length (LS) | 2.575″ |
| Shank Size (SS) | 40 | Flange Diameter (DF) | 2.48″ |
| Tool Type | BT | Overall Length (OAL) | 4.622″ |
| Measurement Type | Inch | Connection Code Machine Side (CCMS) | BT |
Product Features

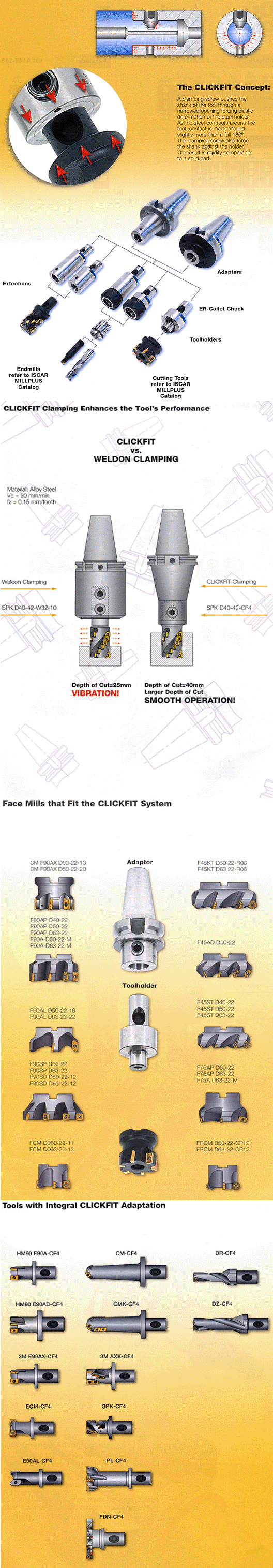

| Family Description | CLICK-FIT modular system connections with BT MAS-403 AD tapered shanks. | Country of Origin | Israel |
| Remarks | For Adaptation Click on More Info. Tightening torque: 44 lbfxft |
Shipping Info
Package Weight
3.064
