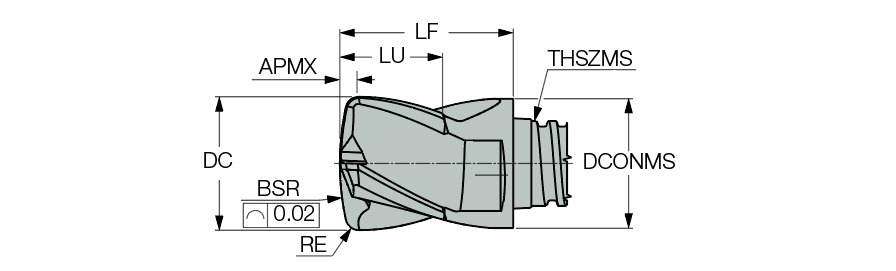

MM ELBA10R20A07-4T06 IC08
End Mill Head; 10 mm Dia. × 1.42 mm LOC × 10 mm Shank Dia. × 19.65 mm OAL ; 4 FL ; T06 ; Carbide ; Uncoated ; IC08
| Application | | Profiling | | Overall Length (OAL) | 19.65 mm |
| Cutting Diameter (DC) | 10 mm | Grade | IC08 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Corner Radius (RE) | 1 mm | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 1.42 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Functional Length (LF) | 13 mm |
Product Features
| Family Description | Interchangeable lens-shaped (Barrel) solid carbide heads for 3D aluminum profiling.For semi-finish & finishing applications | Country of Origin | Israel |
| Remarks | For tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
19
