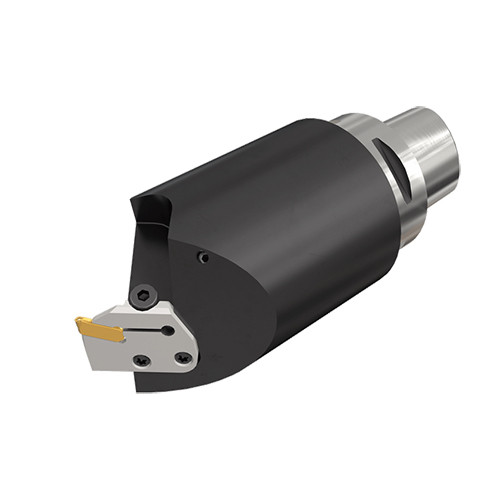

C6 MAHDR-45

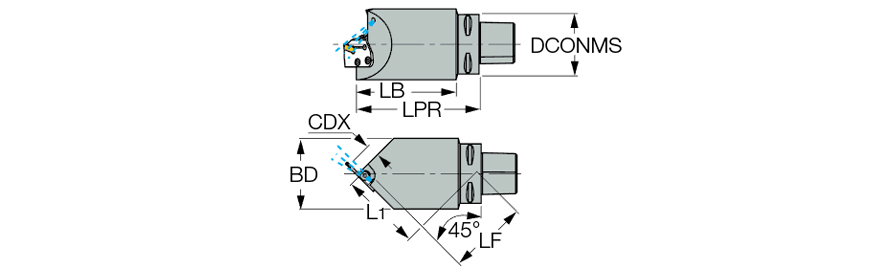

Adapter; 2.48″ Shank Dia. ; 63 Shank Size ; 5.118″ LPR ; 2.953″ Body Dia. ; 3.618″ Body Length ; 6.614″ OAL
| Protruding Length (LPR) | 5.118″ | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Measurement Type | Inch |
| Body Diameter (BD) | 2.953″ | Weight of Item (WT) | 8.29 Lbs |
| Body Length (LB) | 3.618″ | Body Material | Steel |
| Shank Size (SS) | 63 | Overall Length (OAL) | 6.614″ |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | Holders with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks for MODULAR-GRIP parting, grooving, turning and facing adapters. Used for 45° mounting on turn-mill machines. | Country of Origin | Israel |
| Remarks | For mill-turn machines |
Shipping Info
Package Weight
8.569
Related Documentation

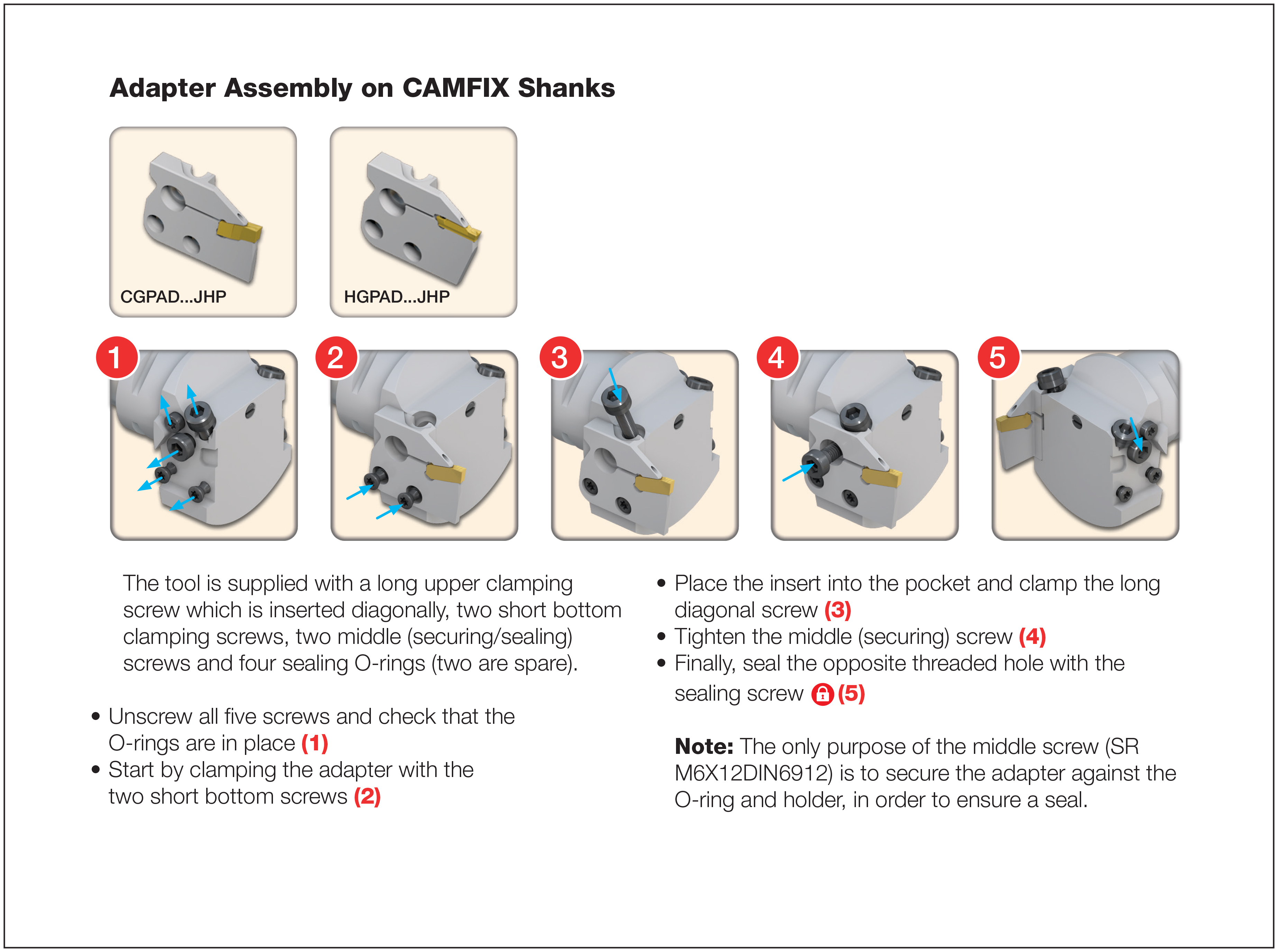

SR14-519-supplied screw in the attached plastic bag for GAD, GAM, DGAD, HGAD and PCADR/L adapters. SR M6X20-XT-supplied screws with the tools in the plastic bag for CGPAD, HGPAD, TGPAD and FGPAD adapters. Sealing Screw used to prevent chips from entering the upper locking screw hole of adapter above.
