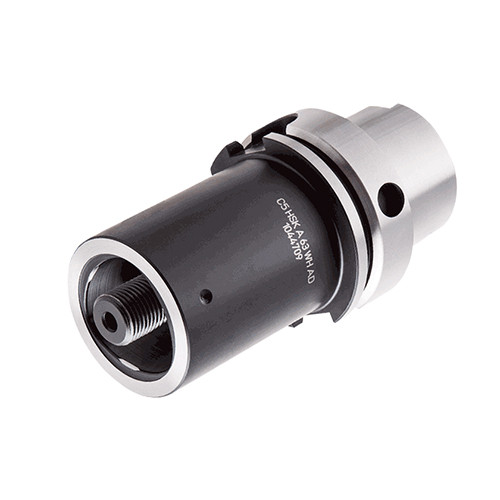

C8 AD HSK A100WHX120
Adapter; 3.937″ Shank Dia. ; 3.1496″ Hole Dia. ; 100 Shank Size ; 4.724″ LPR ; 3.583″ Body Length

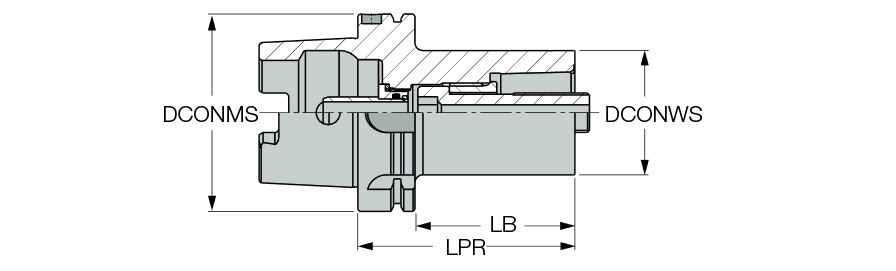

| Connection Diameter Machine Side (DCONMS) | 3.937″ | Measurement Type | Inch |
| Connection Diameter Workpiece Side (DCONWS) | 3.1496″ | Weight of Item (WT) | 10.56 Lbs |
| Shank Size (SS) | 100 | Body Material | Steel |
| Tool Type | HSK | Connection Code Machine Side (CCMS) | HSK |
Product Features

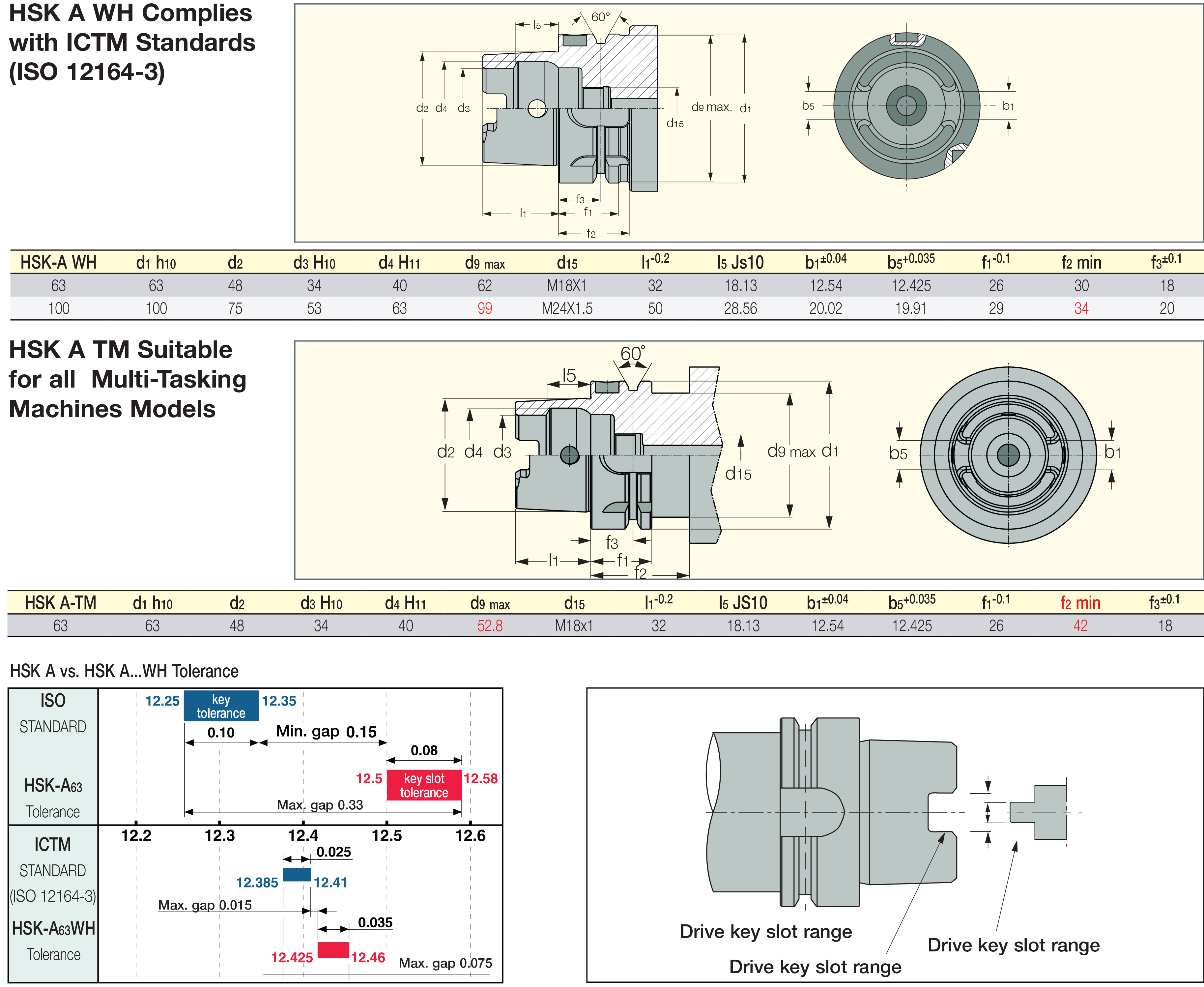

| Family Description | CAMFIX (ISO 26623-1) holders with HSK DIN 69893 form A tapered shanks | Country of Origin | Italy |
| Remarks | To enable clamping the part to be attached, first remove the cooling tube |
Shipping Info
Package Weight
11.305
