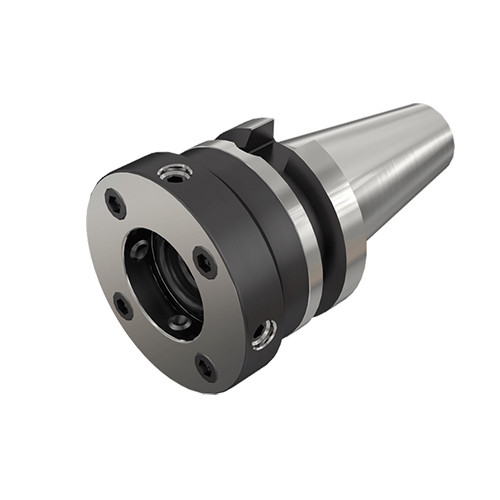

ADJ BT40 D70
Adapter; ; 1.378″ Hole Dia. ; 40 Shank Size ; 2.165″ LPR ; 2.756″ Body Dia. ; 1.102″ Body Length ; 4.74″ OAL

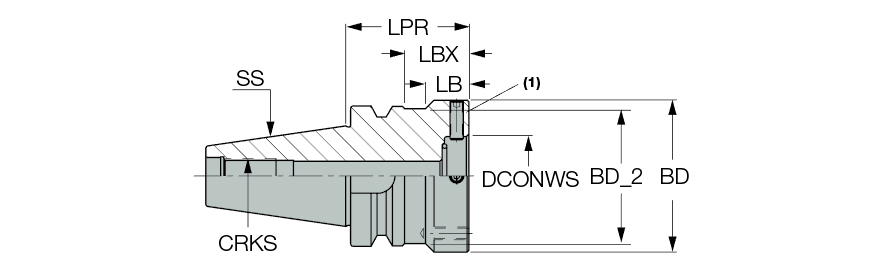

| Protruding Length (LPR) | 2.165″ | Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 1.378″ | Body Diameter_2 (BD_2) | 2.461″ |
| Body Diameter (BD) | 2.756″ | Connection Retention Knob Thread Size (CRKS) | M16 |
| Body Length (LB) | 1.102″ | Shank Length (LS) | 2.575″ |
| Shank Size (SS) | 40 | Flange Diameter (DF) | 2.48″ |
| Tool Type | BT | Overall Length (OAL) | 4.74″ |
| Measurement Type | Inch | Connection Code Machine Side (CCMS) | BT |
| Weight of Item (WT) | 3.44 Lbs |
Product Features
| Family Description | FINEFIT, Center alignment shanks and bases with BT MAS-403 ADB tapered shanks (For specially tailored toolholders). | Country of Origin | Israel |
| Remarks | (1) Use 4 mm hex key for screw adjustment |
Shipping Info
Package Weight
3.801
