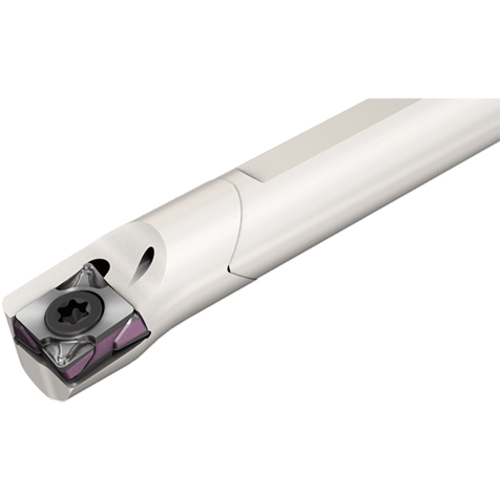

E-SCLXR 5-2X
Int. Turning Tool ; 5″ OAL ; 0.28″ Shank Height ; 0.313″ Shank Dia. ; 5″ LF ; 0.413″ Min Bore Dia. ; Carbide

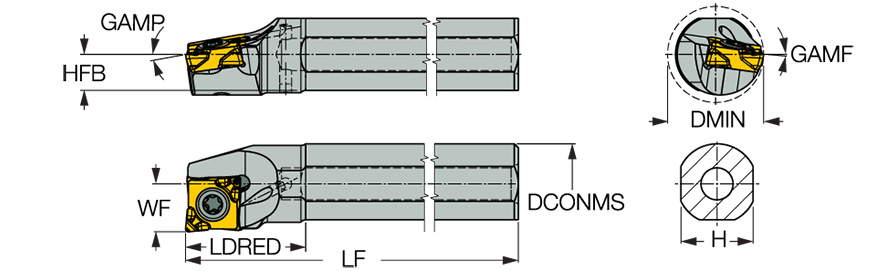

| Connection Diameter Machine Side (DCONMS) | 0.313″ | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 5″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 5″ | Application | | Int. 80° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 3/4″ | Rake Angle Axial (GAMP) | 8 Degrees |
| Shank Height (H) | 0.28″ | Rake Angle Radial (GAMF) | 10 Degrees |
| Functional Width (WF) | 0.217″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CXMU 060208 | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 0.413″ | Measurement Type | Inch |
Product Features
| Family Description | Screw lock boring bars on which CXMU 80° rhombic inserts are mounted | Country of Origin | Israel |
| Remarks | A - steel shank with coolant hole, E - carbide shank with coolant hole |
Shipping Info
Package Weight
108
