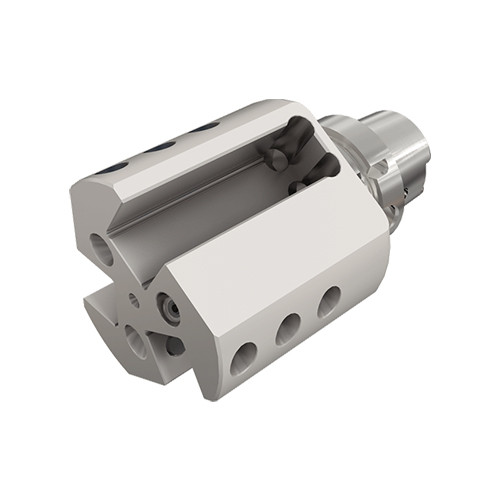

HSK A63WH ASHL 25 3
Adapter; 63 mm Shank Dia. ; 63 Shank Size ; 125 mm LPR ; 30 mm Body Length ; 157 mm OAL

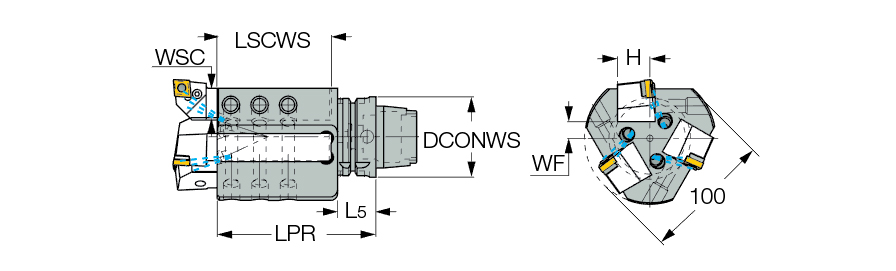

| Protruding Length (LPR) | 125 mm | Shank Size (SS) | 63 |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Coolant Supply Property (CSP) | Through Hole |
| Clamping Length Workpiece Side (LSCWS) | 90 mm | Tool Type | HSK -T (ISO 12164-3) |
| Shank Width (B) | 25 mm | Measurement Type | Metric |
| Shank Height (H) | 25 mm | Weight of Item (WT) | 3.55 Kg |
| Body Length (LB) | 30 mm | Body Material | Steel |
| Functional Width (WF) | 0 mm | Overall Length (OAL) | 157 mm |
Product Features
| Family Description | Triple square shank tool adapters with HSK exchangeable shanks for mounting on turn-mill machines. | Country of Origin | Italy |

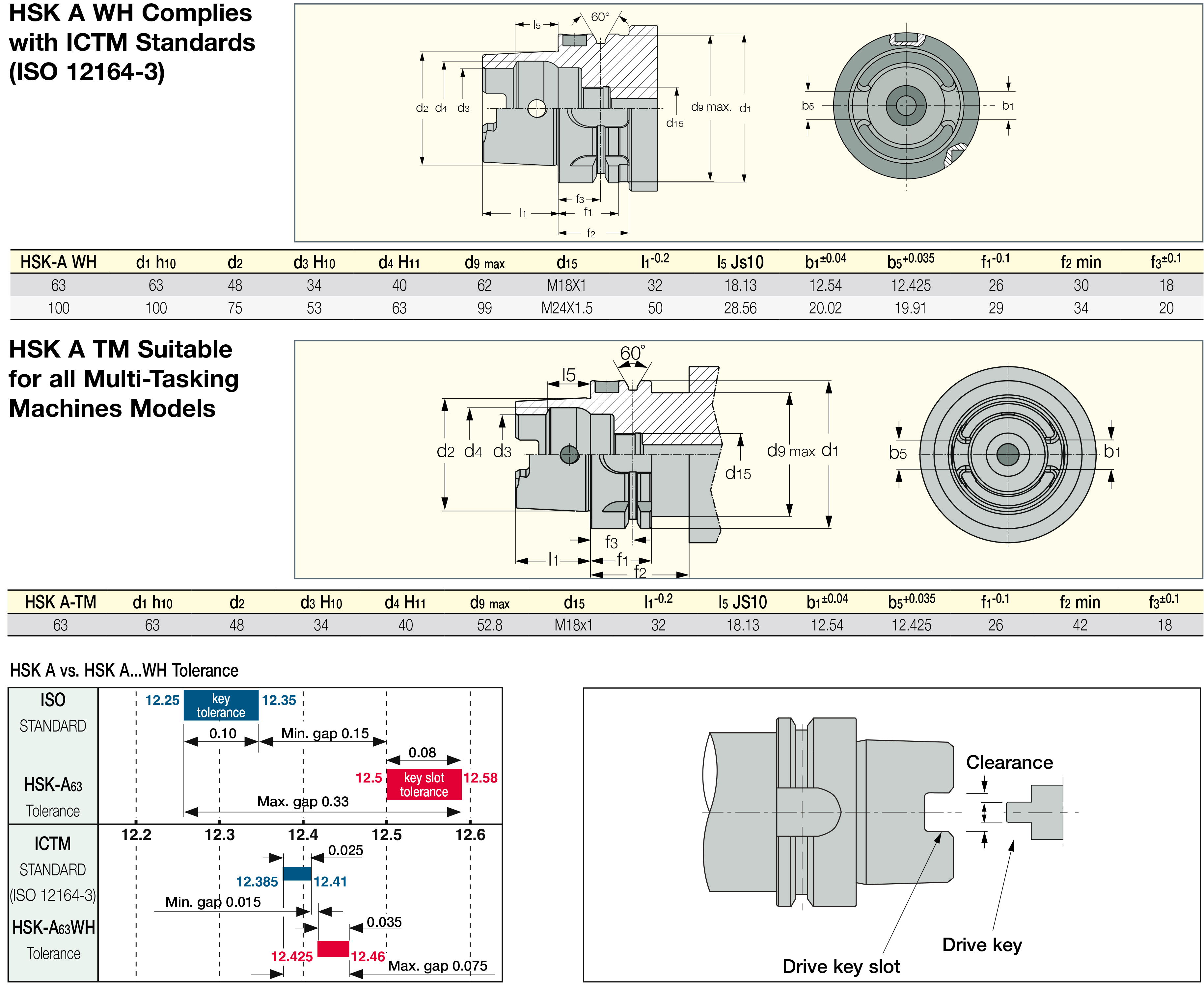

| Remarks | Complies with ICTM standard (ISO 12164-3) A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) For shank dimensions, click on More Info |
Shipping Info
Package Weight
8.395
