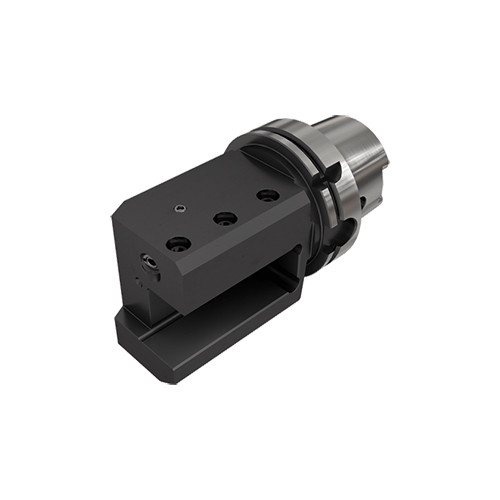

HSK A100WH ASHL 32 1
Adapter; 100 mm Shank Dia. ; 100 Shank Size ; 145 mm LPR ; 38 mm Body Length ; 195 mm OAL

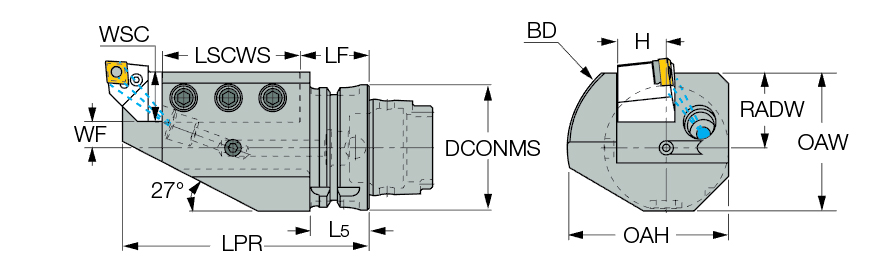

| Protruding Length (LPR) | 145 mm | Coolant Supply Property (CSP) | Through Hole |
| Connection Diameter Machine Side (DCONMS) | 100 mm | Tool Type | HSK -T (ISO 12164-3) |
| Clamping Length Workpiece Side (LSCWS) | 90 mm | Measurement Type | Metric |
| Shank Width (B) | 32 mm | Weight of Item (WT) | 6.43 Kg |
| Shank Height (H) | 32 mm | Body Material | Steel |
| Body Diameter (BD) | 100 mm | Overall Height (OAH) | 85 mm |
| Body Length (LB) | 38 mm | Overall Length (OAL) | 195 mm |
| Functional Width (WF) | 0 mm | Connection Code Machine Side (CCMS) | HSK |
| Shank Size (SS) | 100 | Overall Width (OAW) | 84 mm |
Product Features
| Family Description | Square shank tool adapters with HSK exchangeable shanks for turn-mill machines. | Country of Origin | Italy |
| Remarks | Complies with ICTM standard (ISO 12164-3) Not suitable for ATC (automatic tool changer) on some multi-tasking machine models, please consult your MTB A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) For shank dimensions, click on More Info |
Shipping Info
Package Weight
14.835
Related Documentation
Coolant Nozzle Adjustment Instructions: 1- Open the nut by turning it approximately three-quarters of a turn counter clockwise. 2- Adjust the coolant nozzle eye so that it will direct thecoolant to the area of the cutting edge. 3- Close the nut by turning it approximately three-quartersof a turn clockwise. 4- The special (WRENCH NOZZLE HP M12) key should be used.
