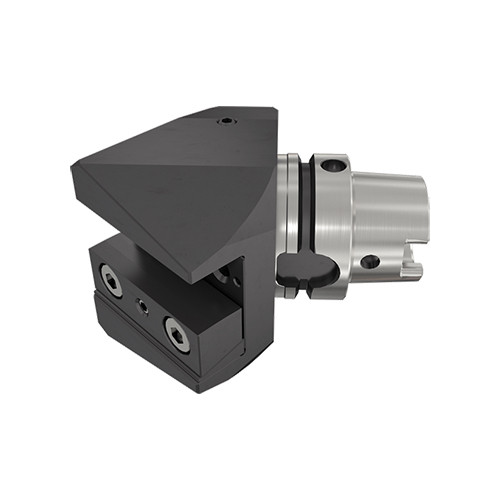

HSK A63WH ASHN 25 45

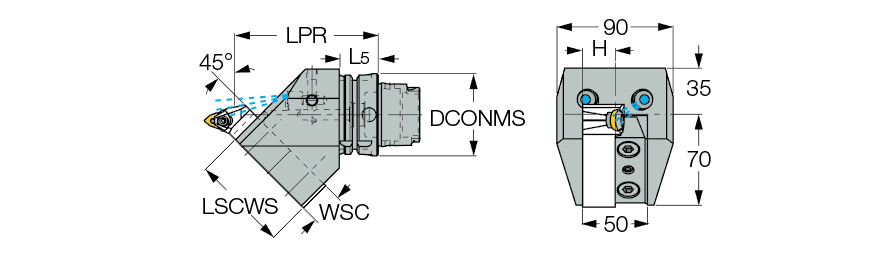

Adapter; 63 mm Shank Dia. ; 63 Shank Size ; 110 mm LPR ; 30 mm Body Length ; 142 mm OAL
| Protruding Length (LPR) | 110 mm | Coolant Supply Property (CSP) | Through Hole |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Tool Type | HSK -T (ISO 12164-3) |
| Clamping Length Workpiece Side (LSCWS) | 72 mm | Measurement Type | Metric |
| Shank Width (B) | 25 mm | Weight of Item (WT) | 3.28 Kg |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Body Length (LB) | 30 mm | Overall Length (OAL) | 142 mm |
| Shank Size (SS) | 63 |
Product Features
| Family Description | Square shank tool adapters with HSK exchangeable shanks for 45° mounting on turn-mill machines (right-or-left hand tools can be used). | Country of Origin | Italy |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) For using left-hand toolholder, the position of the clamping spacer must be changed Complies with ICTM standard (ISO 12164-3) For shank dimensions, click on More Info |
Shipping Info
Package Weight
8.613
