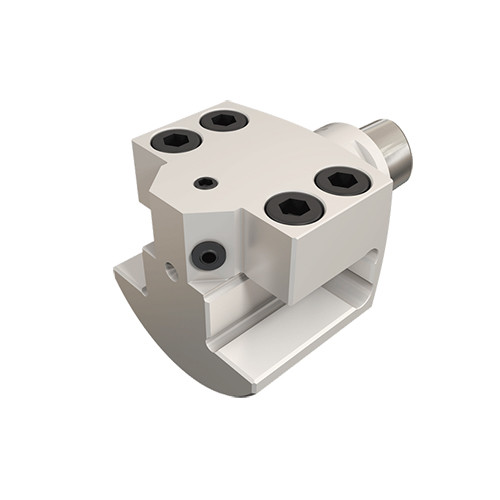

C4 ADES-20

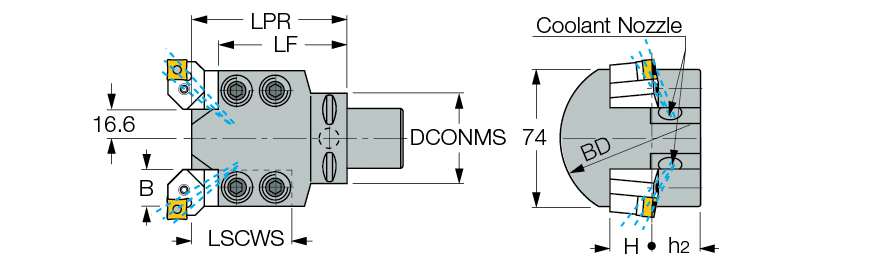

Adapter; 40 mm Shank Dia. ; 40 Shank Size ; 85 mm LPR ; 90 mm Body Dia. ; 71 mm Body Length ; 109 mm OAL

| Protruding Length (LPR) | 85 mm | Coolant Supply Property (CSP) | Through Hole |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Clamping Length Workpiece Side (LSCWS) | 54 mm | Measurement Type | Metric |
| Shank Height (H) | 20 mm | Weight of Item (WT) | 1.94 Kg |
| Body Diameter (BD) | 90 mm | Body Material | Steel |
| Body Length (LB) | 71 mm | Overall Length (OAL) | 109 mm |
| Shank Size (SS) | 40 |

Product Features
| Family Description | Holders with CAMFIX (ISO 26623-1 standard) exchangeable shanks for external square shank tools. | Country of Origin | Israel |
| Remarks | Use the tools with AD suffix. Regular tools should be shortened. |
Shipping Info
Package Weight
4.608
