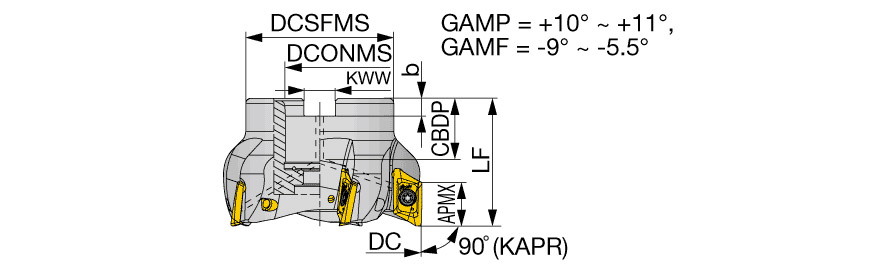

TPXV16U1.50B0.75R03
Indexable Face Mill; 1-1/2″ Dia. × 3/4″ Shank Dia. × 2″ OAL × 0.63″ LOC ; 3 Inserts
| Cutting Diameter (DC/DCX) | 1-1/2″ | Master Insert Identification (MIID) | XVCT160508PEFR-AM |
| Cutting Diameter (DC) | 1-1/2″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 1-1/2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 3 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 0.63″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Functional Length (LF) | 2″ |
| Overall Length (OAL) | 2″ | Tool Type | 90 Facemills for Al. & HTA |
Product Features
| Family Description | Square shoulder mill for high-speed aluminum machining | Country of Origin | S.Korea |
| Remarks | XVCT AM inserts can be used with a TPXV/EPXV cutter. DO NOT use XVCT AJ inserts with a TPXV/EPXV cutter. This may cause tool and machine damage. |
Shipping Info
Package Weight
0
