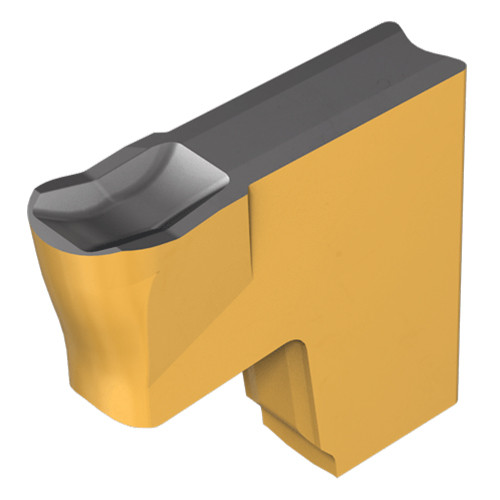

TAG N2.2C-1.1 IC1030

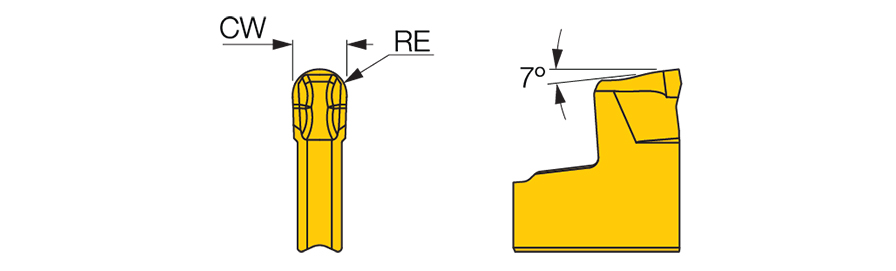

Parting Off Insert; 0.087″ CW × 0.285″ Length × 0.0433″ Corner Radius ; Carbide ; TiAlN+TiN ; IC1030
| Cutting Width (CW) | 0.087″ | Max. Grooving Feed (fg(max)) | 0.0063 ″/rev |
| Corner Radius (RE) | 0.0433″ | Min. Grooving Feed (fg(min)) | 0.0024 ″/rev |
| Insert Length (INSL) | 0.285″ | Chip Breaker Type | C |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+TiN | Measurement Type | Inch |
| Grade | IC1030 | Body Material | Carbide |
| Application | | Ext. Grooving | Side Slotting | Slitting | Y Axis Parting & grooving | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00157″ |
| Applicable Material | | Steel | Stainless Steel | |
Product Features
| Family Description | Grooving and Slitting full radius inserts | Country of Origin | Israel |
Shipping Info
Package Weight
2.1
