DLN 140-070-16A-5D

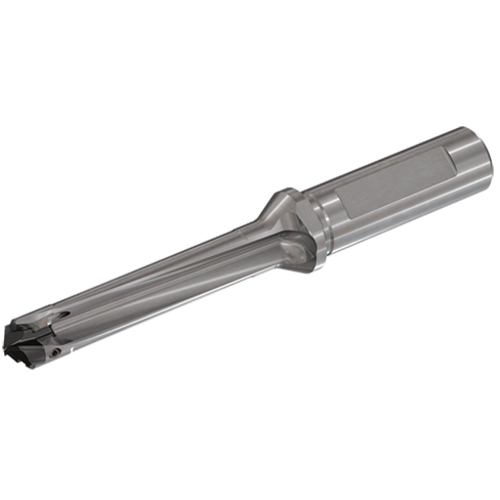

Drill; 14 mm Dia. × 14 mm Min. Dia. × 14.49 mm Max. Dia. × 16 mm Shank Dia. × 138.15 mm OAL × 72.55 mm LU × 48 mm Shank Length ; Weldon Shank

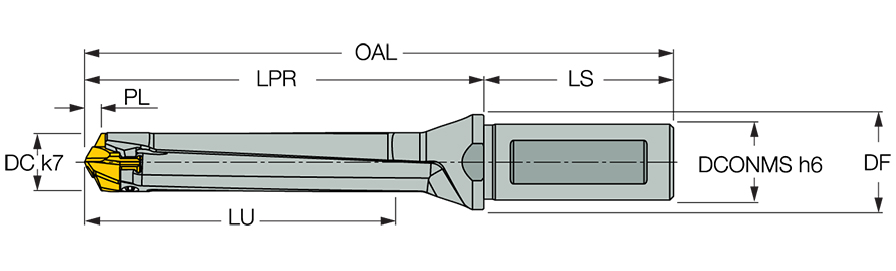

| Cutting Diameter (DC) | 14 mm | Overall Length (OAL) | 138.15 mm |
| Usable Length (LU) | 72.55 mm | Shank Length (LS) | 48 mm |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ILP 140-2M |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Point Length (PL) | 2.55 mm |
| Insert Seat Size Code (SSC) | 14.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 14 mm | Flange Diameter (DF) | 20 mm |
| Cutting Diameter Maximum (DCX) | 14.49 mm | Body Diameter Reduced (BDRED) | 20 mm |
| Protruding Length (LPR) | 90.2 mm | Shank Diameter Tolerance (TCDMM) | h6 |

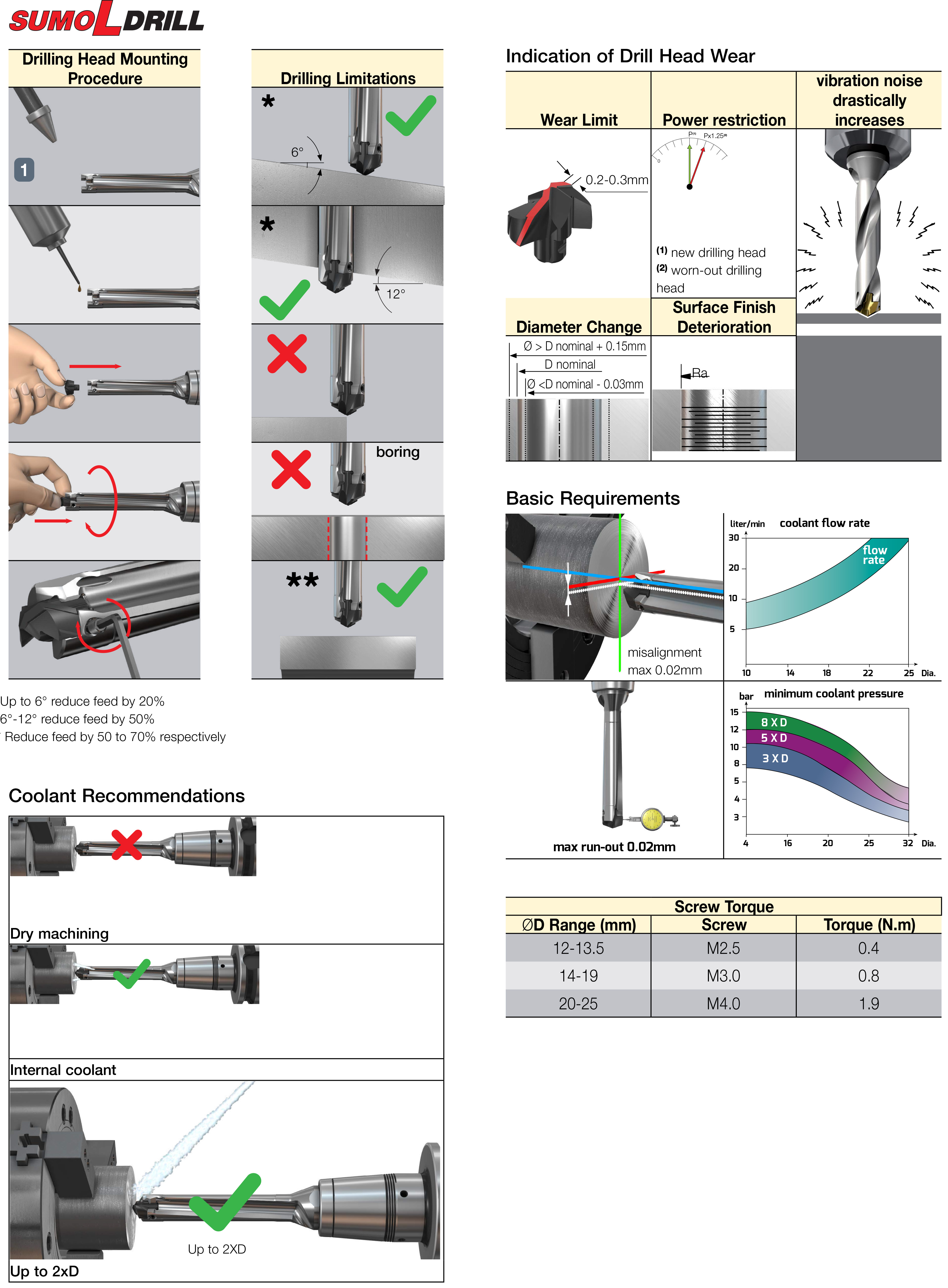

Product Features
| Family Description | Exchangeable head drills with screw lock system for interrupted drilling applications | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
