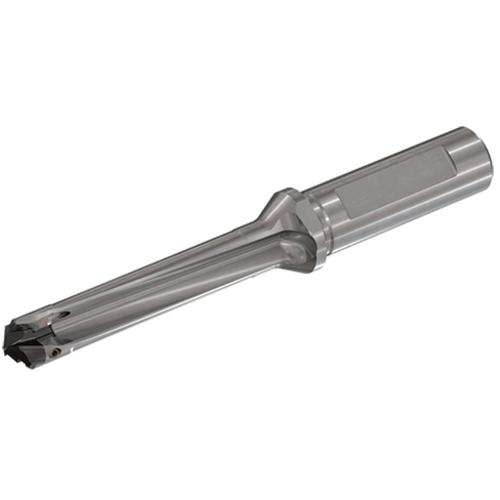

DLN 190-057-25A-3D
Drill; 19 mm Dia. × 19 mm Min. Dia. × 19.99 mm Max. Dia. × 25 mm Shank Dia. × 143 mm OAL × 60.35 mm LU × 56 mm Shank Length ; Weldon Shank

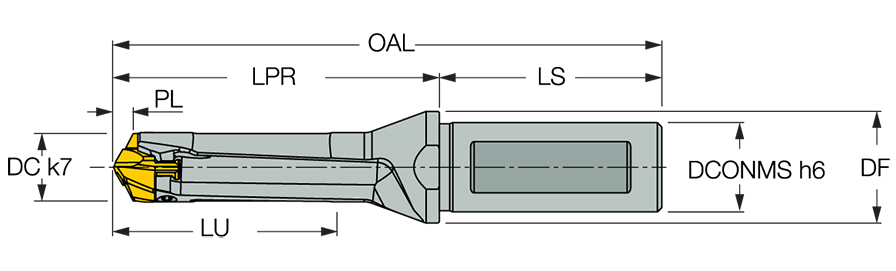

| Cutting Diameter (DC) | 19 mm | Overall Length (OAL) | 143 mm |
| Usable Length (LU) | 60.35 mm | Shank Length (LS) | 56 mm |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ILP 190-2M |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Point Length (PL) | 3.35 mm |
| Insert Seat Size Code (SSC) | 19.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 19 mm | Flange Diameter (DF) | 32 mm |
| Cutting Diameter Maximum (DCX) | 19.99 mm | Body Diameter Reduced (BDRED) | 32 mm |
| Protruding Length (LPR) | 87 mm | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Exchangeable head drills with screw lock system for interrupted drilling applications | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
336
