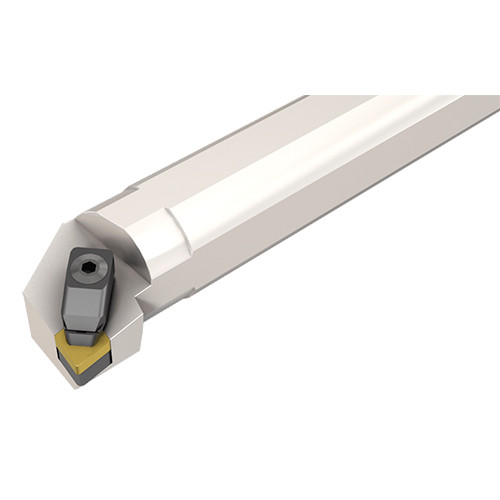

S50U CCLNR-1204F
Int. Turning Tool ; 350 mm OAL ; 47 mm Shank Height ; 50 mm Shank Dia. ; 350 mm LF ; 70 mm Min Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 350 mm | Application | | Int. 80° Diamond 95° Approach | |
| Overall Length (OAL) | 350 mm | Rake Angle Axial (GAMP) | -5 Degrees |
| Reduced Body Diameter Length (LDRED) | 60 mm | Rake Angle Radial (GAMF) | -11.5 Degrees |
| Shank Height (H) | 47 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 32 mm | Body Material | Steel |
| Master Insert Identification (MIID) | CNGN 1204 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 70 mm |
Product Features
| Family Description | Clamp lock boring bars carrying negative 80° rhombic inserts | Country of Origin | Spain |
