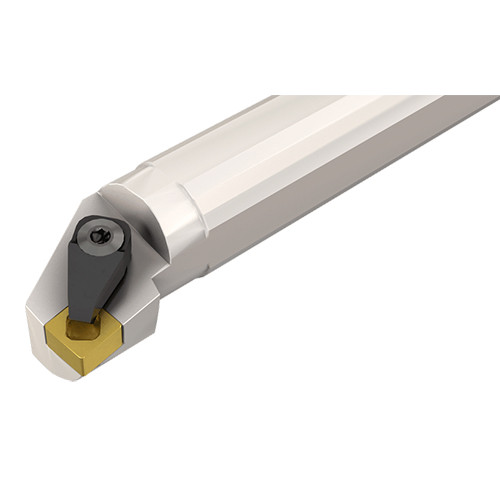

S40T CSYNR-1207X
Int. Turning Tool ; 300 mm OAL ; 37 mm Shank Height ; 40 mm Shank Dia. ; 70 mm Min Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 40 mm | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 300 mm | Application | | Int. Square 85° Approach | |
| Overall Length (OAL) | 300 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Reduced Body Diameter Length (LDRED) | 67 mm | Rake Angle Radial (GAMF) | -12 Degrees |
| Shank Height (H) | 37 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 27 mm | Body Material | Steel |
| Master Insert Identification (MIID) | SNGX 1207 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 70 mm |
Product Features
| Family Description | 85° Clamp lock boring bars carrying square ceramic inserts | Country of Origin | Spain |
