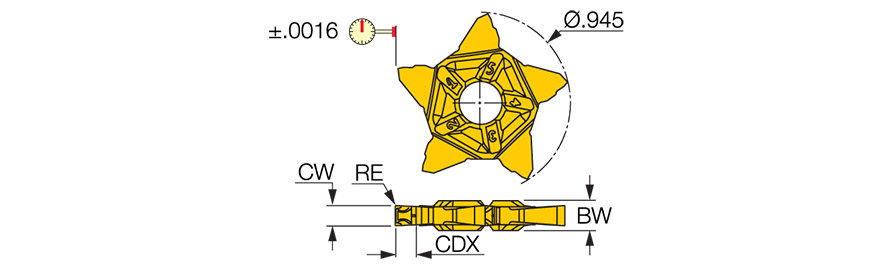

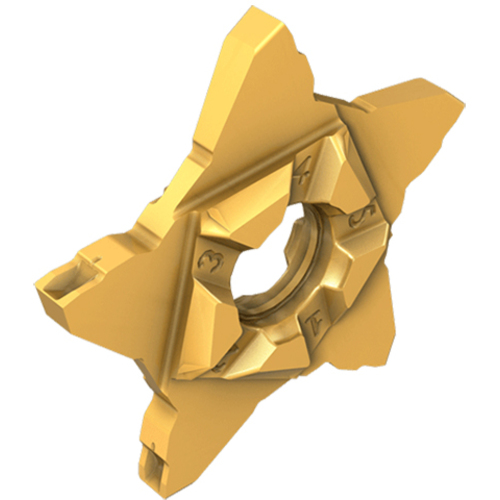

PENTA 24N200C020SL IC808G
Parting Off Insert; 0.079″ CW × 0.0079″ Corner Radius ; Neutral ; Carbide ; TiAlN+AlTiN+TiN ; IC808G
| Cutting Width (CW) | 0.079″ | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0079″ | Max. Grooving Feed (fg(max)) | 0.0063 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Min. Grooving Feed (fg(min)) | 0.002 ″/rev |
| Cutting Depth Maximum (CDX) | 0.236″ | Chip Breaker Type | J |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Inch |
| Grade | IC808G | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | | Insert Width (W1) | 0.157″ |
Product Features
| Family Description | First choice for the parting of bars, hard materials, and tough applications with a negative cutting rake angle | Country of Origin | Israel |
| Remarks | CUTDIA as a function of depth of cut (CDX). For parting and grooving range, click on More Info. |
Shipping Info
Package Weight
0.020
