PCHL 12.7-24-JHP-QC
Grooving Toolholder ; 3.937″ OAL ; 1/2″ Shank Height ; 1/2″ Shank Width ; 0.02″ CW Min. ; 1/8″ CW Max. ; 0.252″ Max Depth ; Steel

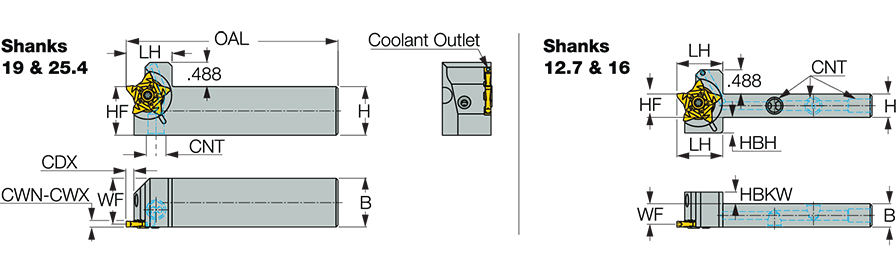

| Cutting Width Minimum (CWN) | 0.02″ | Head Length (LH) | 0.925″ |
| Cutting Width Maximum (CWX) | 1/8″ | Overall Length (OAL) | 3.937″ |
| Cutting Depth Maximum (CDX) | 0.252″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | |
| Shank Height (H) | 1/2″ | Body Material | Steel |
| Shank Width (B) | 1/2″ | Measurement Type | Inch |
| Functional Width (WF) | 0.441″ | Head Bottom Offset Height (HBH) | 0.287″ |
Product Features
| Family Description | Grooving, parting, and recessing tools with safety lock clamping for five cutting-edged pentagonal-shaped inserts. SAFE-T-LOCK clamping mechanism with superior insert stability for fast and precise indexing. | Country of Origin | Israel |
| Remarks | For more details click on More Info |
Shipping Info
Package Weight
194
