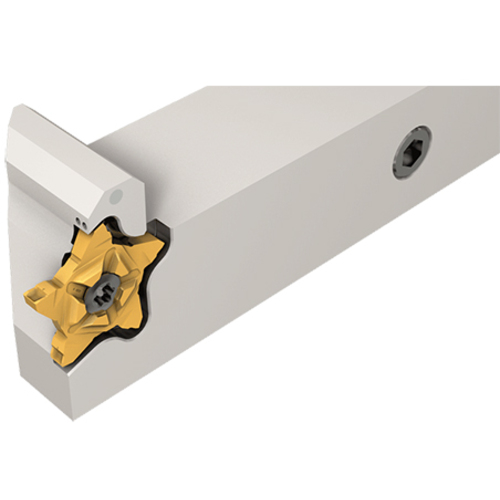

PCHR 20-24-JHP-MC-QC
Grooving Toolholder ; 93.5 mm OAL ; 20 mm Shank Height ; 20 mm Shank Width ; 0.5 mm CW Min. ; 3.18 mm CW Max. ; 6.4 mm Max Depth ; Steel

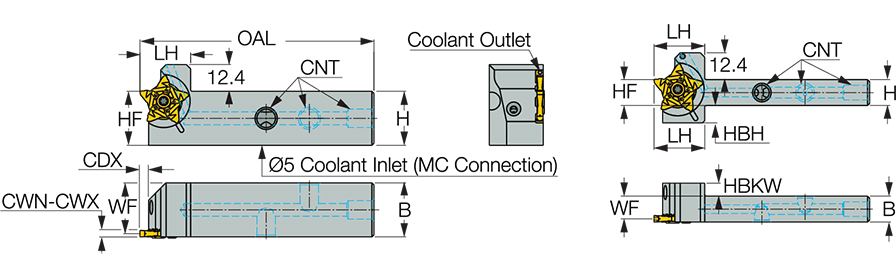

| Cutting Width Minimum (CWN) | 0.5 mm | Head Length (LH) | 23.5 mm |
| Cutting Width Maximum (CWX) | 3.18 mm | Overall Length (OAL) | 93.5 mm |
| Cutting Depth Maximum (CDX) | 6.4 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | |
| Shank Height (H) | 20 mm | Body Material | Steel |
| Shank Width (B) | 20 mm | Measurement Type | Metric |
| Functional Width (WF) | 18.5 mm |
Product Features
| Family Description | Grooving, parting, and recessing tools with safety lock clamping for five cutting-edged pentagonal-shaped inserts. SAFE-T-LOCK clamping mechanism with superior insert stability for fast and precise indexing. | Country of Origin | Israel |
| Remarks | For more details click on More Info |
Shipping Info
Package Weight
358
