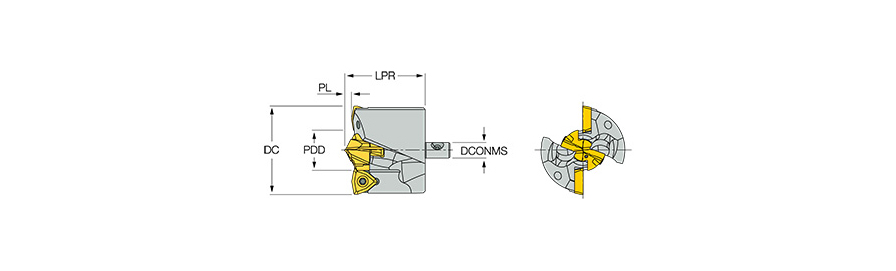

| Cutting Diameter (DC) | 1.535″ | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 0783-MNC |
| Connection Diameter Machine Side (DCONMS) | 0.272″ | Point Length (PL) | 0.11811″ |
| Insert Seat Size Code (SSC) | 21.0 | Body Material | Steel |
| Protruding Length (LPR) | 1.378″ | Decimal Equivalent | 1.535″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Exchangeable drilling heads with Iscar MD connection, carrying SUMOCHAM pilot insert for precise centering, as well as two peripheral triangular WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter | Country of Origin | Israel |
Shipping Info
Package Weight
204
