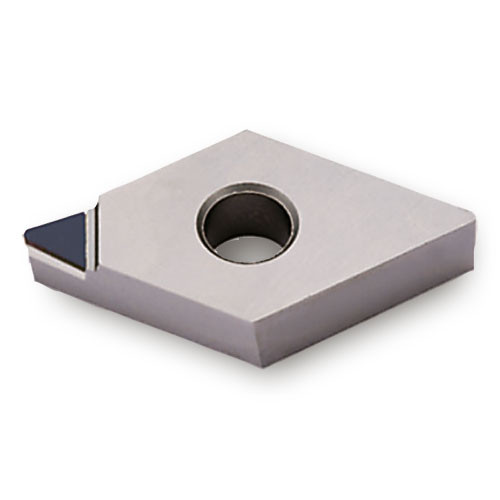

DNGA431LN-10 TD1020
| Corner Radius (RE) | 0.016″ | Max. Turning Feed (ft(max)) | 0.008″ |
| Cutting Edge Length (L) | 0.61″ | Clearance Angle Major (AN) | 10 Degrees |
| Insert Thickness (S) | 0.187″ | Number of Cutting Edges | 1 |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Insert Included Angle (EPSR) | 55 Degrees | Measurement Type | Inch |
| Min D.O.C. | 0.004″ | Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.098″ | Cutting Edge Effective Length (LE) | 0.157″ |
| Min. Turning Feed (ft(min)) | 0.002″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.048
