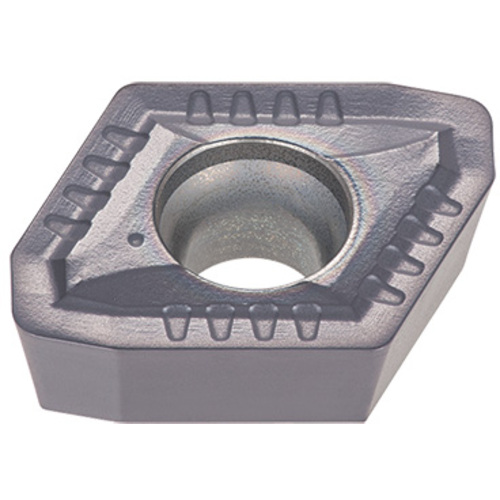

XPMT08T308R-DS AH7020
Drill Insert; 0.335″ Length × 0.39″ Width × 0.156″ Thickness × 0.335″ IC × 0.0315″ Corner Radius ; Carbide ; TiAlN ; AH7020

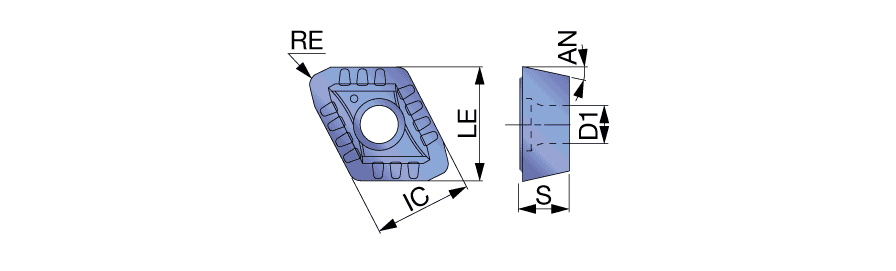

| Cutting Edge Length (L) | 0.335″ | Grade | AH7020 |
| Insert Width (W1) | 0.39″ | Application | | General Drilling | |
| Insert Thickness (S) | 0.156″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.335″ | Tool Type | Indexable drilling inserts |
| Corner Radius (RE) | 0.0315″ | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.13″ | Body Material | Carbide |
| Coating | TiAlN |
Product Features
| Family Description | TungDrill insert with DS chipbreaker for stainless steel drilling | Country of Origin | Japan |
