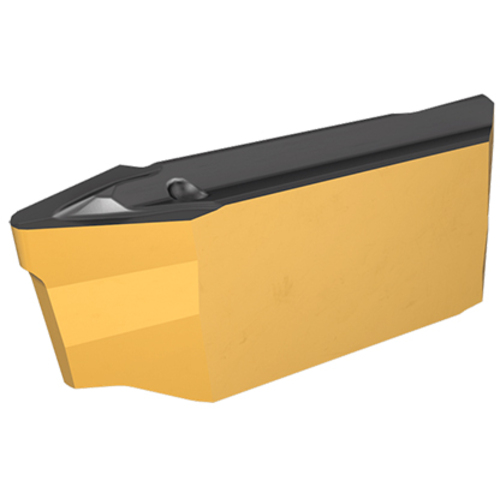

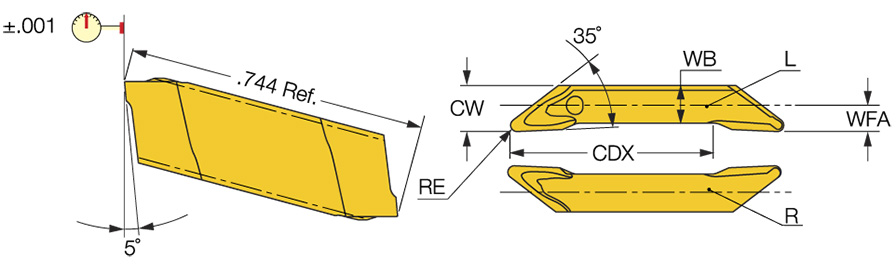

GIVR 302-F1M-12P IC808
Grooving Insert; 0.11″ CW × 0.504″ Max Depth ; Carbide ; IC808 ; TiAlN+AlTiN+TiN
| Cutting Width (CW) | 0.11″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0079″ | Application | | Ext. Back Turning | Ext. Profiling | Ext. Undercut | |
| Cutting Depth Maximum (CDX) | 0.504″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 5 Degrees | Chip Breaker Type | F1M |
| Insert Length (INSL) | 0.744″ | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Tool Type | Groove-Turn Precision Inserts |
| Grade | IC808 | Body Material | Carbide |
Product Features
| Family Description | Double-edged groove-turn inserts for back turning, undercutting and profiling. | Country of Origin | Israel |
Shipping Info
Package Weight
0.009
