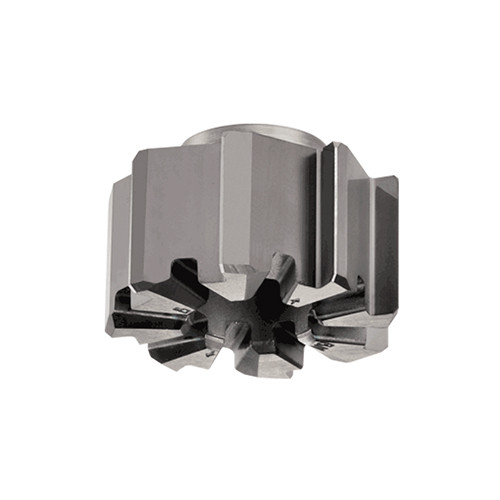

RM-BN5-13.000-H7SA IC908

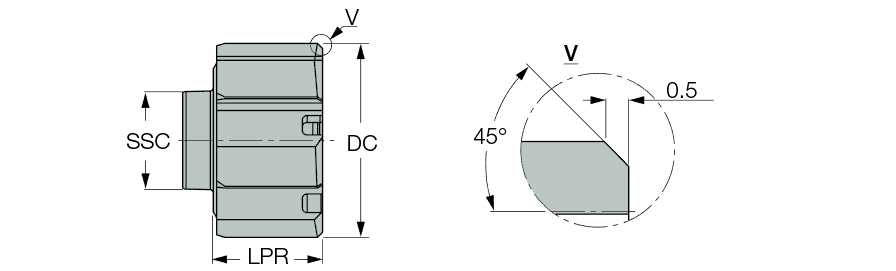

| Cutting Diameter (DC) | 13 mm | Cutting Direction (HAND) | Straight |
| Cutting Edge Length (L) | 9.5 mm | Tool Type | Shell Reamers / BAYO Heads |
| Insert Seat Size Code (SSC) | BN5 | Flute Type | Straight |
| Protruding Length (LPR) | 9.5 mm | Fits Arbor | #9 |
| Flute Count (NOF) | 6 | Arbore-Hole Diameter | 1-1/4″ |
| Flute Helix Angle (FHA) | 0.5 Degrees | Helix Angle | 0.5 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Application | | Blind & Perpendicular Hole | Blind & Radial Groove | Blind Hole | | Grade | IC908 |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN |
Product Features
| Family Description | Interchangeable straight flute solid carbide reaming heads (shell reamers), with a quick change bayonet mechanism for H7 hole tolerance high speed reaming. | Country of Origin | Israel |
| Remarks | For user guide, click on More Info |
Shipping Info
Package Weight
0.057
