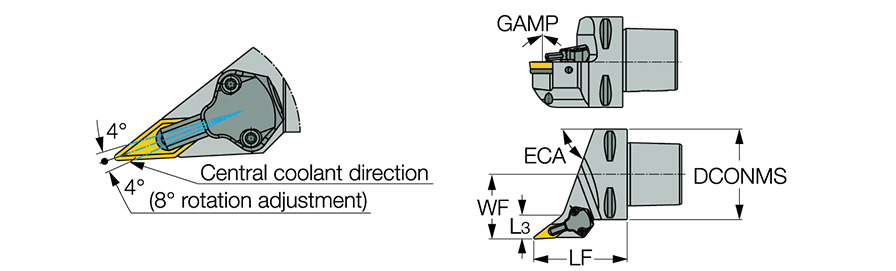

| Overall Length (OAL) | 3.11″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 2.165″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Width (WF) | 1.063″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 3/8″ | End Chamfer Angle (ECA) | 55 Degrees |
| Cutting Direction (HAND) | Right Hand | Tool Type | Tapered Shank Turning Tools |
| Master Insert Identification (MIID) | VC..33.. | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Style | SCLCL08-3A |
| Application | | Ext. 35° Diamond 93° Approach | | Insert Style | 2.165″ |
Product Features
| Family Description | Screw lock tools with CAMFIX (ISO 26623-1 standard) exchangeable shanks and channels for high pressure coolant, carrying 35° Rhombic Inserts with 7° Clearance Angle. | Country of Origin | Israel |
| Remarks | For more details, click on More Info |
Shipping Info
Package Weight
0.859
