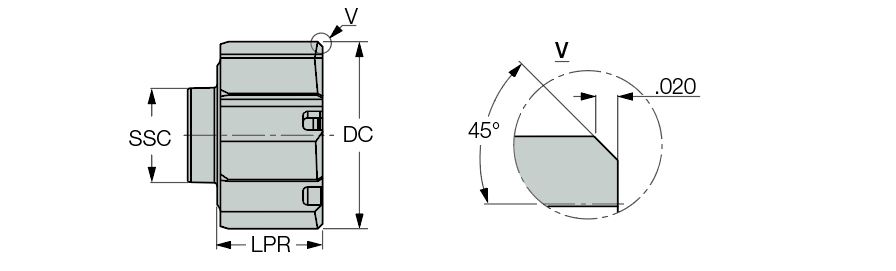

RM-BN9-1.0000-H7SA IC08
| Cutting Diameter (DC) | 1″ | Coating | Uncoated |
| Cutting Edge Length (L) | 0.508″ | Tool Type | Shell Reamers / BAYO Heads |
| Insert Seat Size Code (SSC) | BN9 | Flute Type | Straight |
| Protruding Length (LPR) | 0.508″ | Fits Arbor | #9 |
| Flute Count (NOF) | 8 | Arbore-Hole Diameter | 1-1/4″ |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Application | | Blind & Perpendicular Hole | Blind & Radial Groove | Blind Hole | | Grade | IC08 |
| Cutting Edge Material | Carbide | Body Material | Carbide |
Product Features

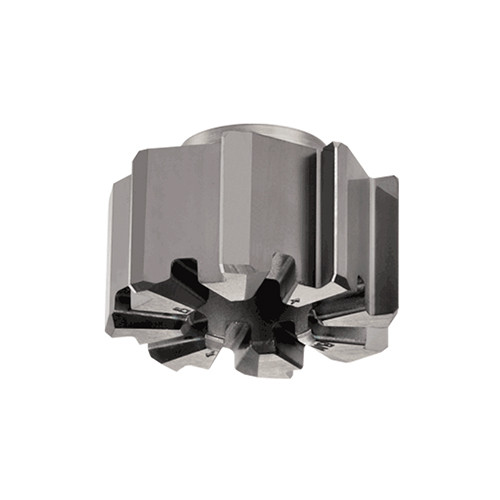

| Family Description | Interchangeable straight flute solid carbide reaming heads (shell reamers), with a quick change bayonet mechanism for H7 hole tolerance high speed reaming. | Country of Origin | Israel |
| Remarks | For user guide, click on More Info |
Shipping Info
Package Weight
0.161
