| Thread Standard | THFT | | Standard | ISO 68, DIN 13 |
| Depth of Cut Maximum (APMX) | 0.492″ | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Connection Code Machine Side (CCMS) | MultiMaster |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | VP60 |
| Application | | External Thread Milling | Internal Thread Milling | |
Product Features

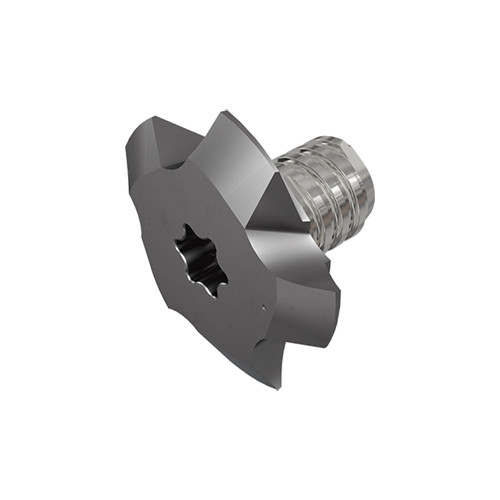

| Family Description | Interchangeable solid carbide milling heads for 60° partial profile thread milling | Country of Origin | Israel |
| Remarks | For ISO metric thread (ISO 68, DIN13, ANSI B 1.13M-1983) For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.125
