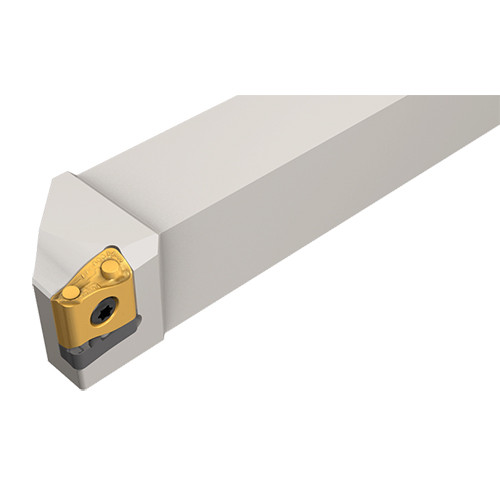

SLANR 3232P-15 TANG
| Shank Height (H) | 32 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 32 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 170 mm | Body Material | Steel |
| Head Length (LH) | 35 mm | Cutting Position | External |
| Functional Width (WF) | 37 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | LNMX 1506.. | Style | SCLCL08-3A |
| Application | | Ext. Tangential 93° Approach | | Insert Style | 170mm |
Product Features
| Family Description | Screw-lock tools carrying the LNMX.. tangentially clamped inserts. Recommended for heavy longitudinal and face turning. | Country of Origin | Israel |
| Remarks | ap max for facing: LNMX 11-2.8 mm, LNMX 15-3.8 mm, LNMX 22-5.8 mm |
Shipping Info
Package Weight
3.139
