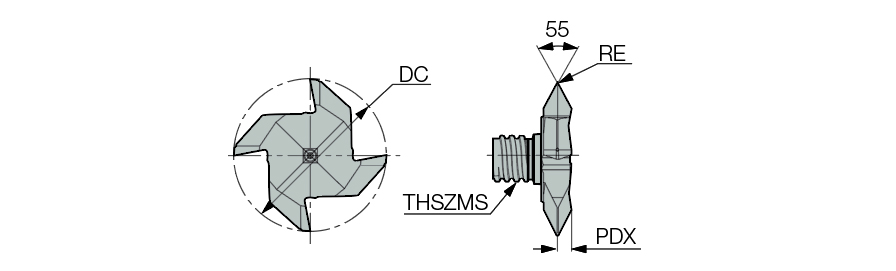

| Thread Standard | THFT | | Cutting Edge Material | Carbide |
| Thread Diameter Size (TDZ) | G3/4 | Tool Type | Solid carbide thread mills |
| Depth of Cut Maximum (APMX) | 0.492″ | Minimum Bore Diameter (DMIN) | 0.953″ |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Min. Bore Diameter | 0.953″ |
| Cutting Diameter (DC) | 0.854″ | Internal/External | External |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Coating | TiCN+TiN | Overall Length (OAL) | 0.498″ |
| Grade | IC528 | Body Material | Carbide |
| Corner Radius (RE) | 0.0079″ | Thread Size | G3/4 - |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | MultiMaster |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | WH55 |
| Standard | DIN ISO 228, B.S. 84 |
Product Features

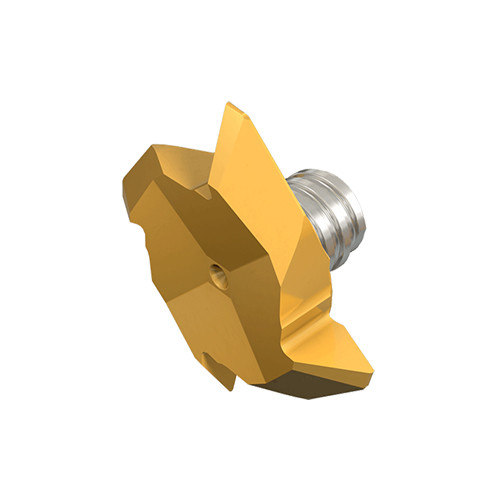

| Family Description | Interchangeable solid carbide milling heads for 55° partial profile thread milling | Country of Origin | Israel |
| Remarks | For clamping keys (should be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection B.S.84 Internal & External tolerance: Medium class |
Shipping Info
Package Weight
0.048
