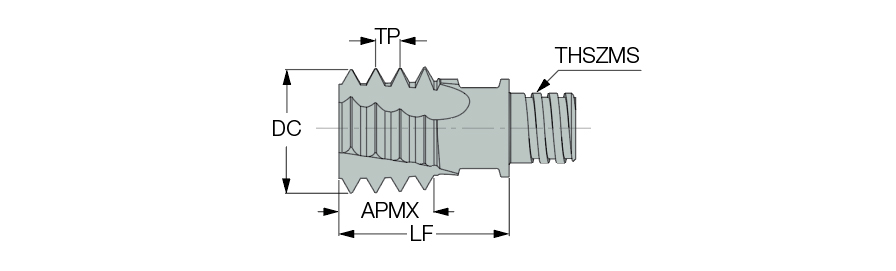

| Thread Standard | UNF |THFT | | Length | 0.502″ |
| Thread Pitch (TP) | 1.27 mm | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 20 | Tool Type | Solid carbide thread mills |
| Depth of Cut Maximum (APMX) | 0.492″ | Functional Length (LF) | 0.502″ |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | Pitch TPI External (TPI Ext) | 20 |
| Cutting Diameter (DC) | 0.394″ | Internal/External | Internal |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Coating | TiAlN | Overall Length (OAL) | 0.781″ |
| Grade | IC908 | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | MultiMaster |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | UN60 |

Product Features
| Family Description | Carbide milling heads with a threaded (MULTI-MASTER) connection for internal UN thread profile | Country of Origin | Israel |
| Remarks | Note: Description and dimensions relate to the new products with clamping flats For clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.027
