DSSNL 3232P-15
Turning Toolholder; 170 mm OAL × 32 mm Shank Height × 32 mm Shank Width × 34 mm LH ; Left Hand ; Steel

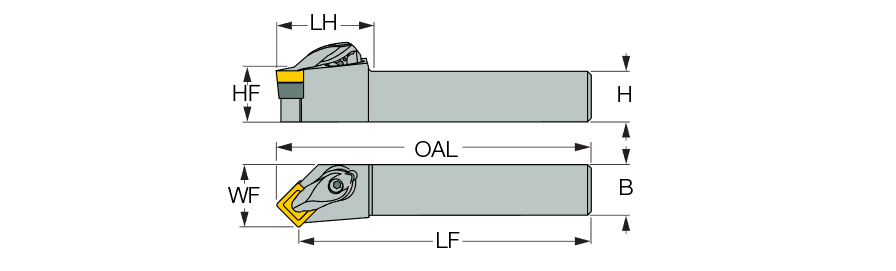

| Shank Height (H) | 32 mm | Application | | Ext. 90°Square 45°Face&Turn Ap | |
| Shank Width (B) | 32 mm | Rake Angle Axial (GAMP) | -5.7 Degrees |
| Overall Length (OAL) | 170 mm | Rake Angle Radial (GAMF) | -5.7 Degrees |
| Functional Length (LF) | 170 mm | Body Material | Steel |
| Head Length (LH) | 34 mm | Cutting Position | External |
| Functional Width (WF) | 40 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 15.88 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | SNMG 1506 | Insert Style | 170mm |
Product Features
| Family Description | 45° entering angle R-Clamp tools carrying negative square inserts for longitudinal and facing applications | Country of Origin | S.Korea |
Shipping Info
Package Weight
3.071
