| Thread Standard | MF |THFT | | Cutting Edge Material | Carbide |

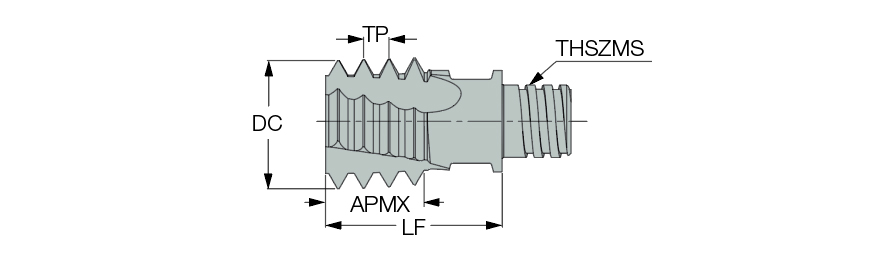

| Thread Pitch (TP) | 1 mm | Tool Type | Solid carbide thread mills |
| Depth of Cut Maximum (APMX) | 0.492″ | Functional Length (LF) | 0.502″ |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | Pitch in mm | 1 mm |
| Cutting Diameter (DC) | 0.394″ | Pitch Ex | 1 mm |
| Flute Count (NOF) | 4 | Internal/External | Internal |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Overall Length (OAL) | 0.781″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Body Material | Carbide |
| Application | | Internal Thread Milling | | Connection Code Machine Side (CCMS) | MultiMaster |
| Length | 0.502″ | Thread Form Type (THFT) | M60 |
Product Features

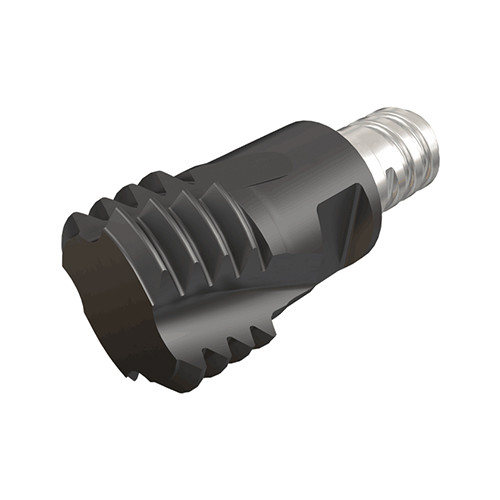

| Family Description | Carbide milling heads with a threaded (MULTI-MASTER) connection for internal ISO metric thread. | Country of Origin | Israel |
| Remarks | Note: Description and dimensions relate to the new products with clamping flats For clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.036
