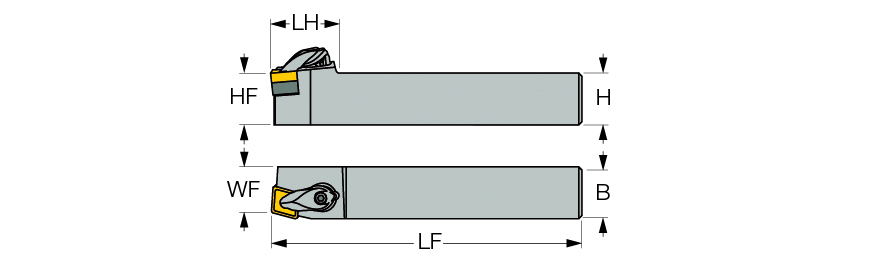

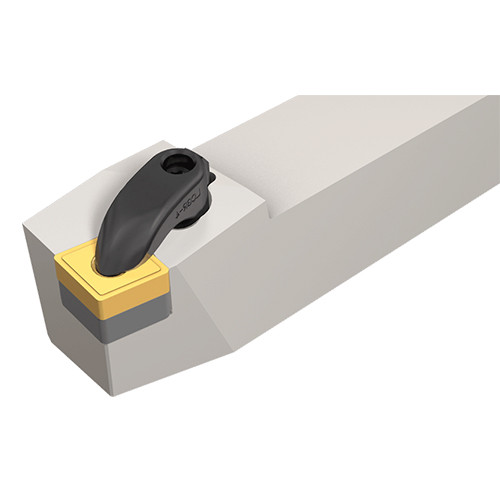

DCBNL 3232P-19
| Shank Height (H) | 32 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 32 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 170 mm | Body Material | Steel |
| Head Length (LH) | 42 mm | Cutting Position | External |
| Functional Width (WF) | 27 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 19.05 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | CNMG 1906 | Insert Style | 170mm |
| Application | | Ext. 100° Diamond 75° Approach | |
Product Features
| Family Description | R-clamp tools with 75° entering angle using the 100° corner of CNMG inserts | Country of Origin | S.Korea |
Shipping Info
Package Weight
3.062
