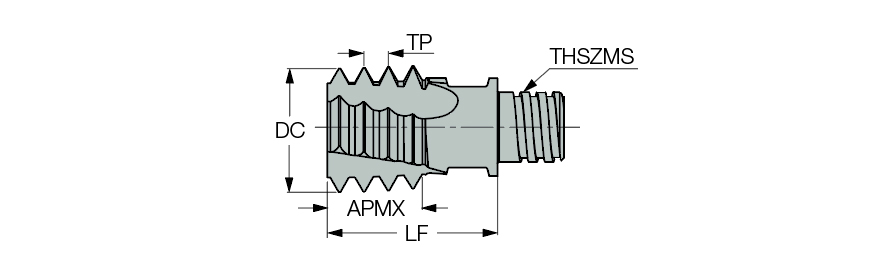

| Thread Standard | BSP |THFT | | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Pitch (TP) | 2.309 mm | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 11 | Tool Type | Solid carbide thread mills |
| Thread Diameter Size (TDZ) | G=>1 | Functional Length (LF) | 0.787″ |
| Depth of Cut Maximum (APMX) | 0.492″ | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Overall Length (OAL) | 1.1″ |
| Cutting Diameter (DC) | 0.63″ | Body Material | Carbide |
| Flute Count (NOF) | 4 | Thread Size | G=>1 - 11 |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | MultiMaster |
| Grade | IC908 | Thread Form Type (THFT) | WH55 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Carbide milling heads with a threaded (MULTI-MASTER) connection for internal and external 55° BSW thread profile. | Country of Origin | Israel |
| Remarks | Note: Description and dimensions relate to the new products with clamping flats For clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection B.S.84 Internal & External tolerance: Medium class |
Shipping Info
Package Weight
0.103
