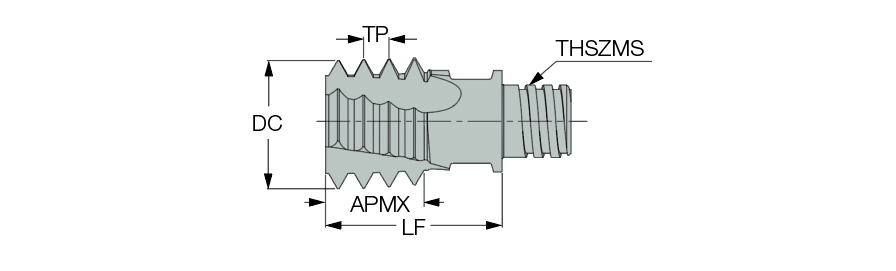

| Thread Standard | MF |THFT | | Application | | Internal Thread Milling | |
| Thread Pitch (TP) | 1.5 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.492″ | Tool Type | Solid carbide thread mills |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Functional Length (LF) | 14.3 mm |
| Cutting Diameter (DC) | 12 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Overall Length (OAL) | 20.95 mm |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Connection Code Machine Side (CCMS) | MultiMaster |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | M60 |
Product Features
| Family Description | Carbide milling heads with a threaded (MULTI-MASTER) connection for internal ISO metric thread. | Country of Origin | Israel |

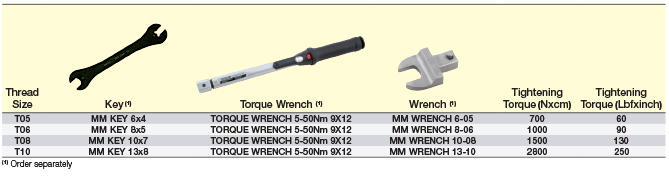

| Remarks | Note: Description and dimensions relate to the new products with clamping flats For clamping keys (to be ordered separately), tightening torques and clamping instructions, click on "More Info" Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.052
