C5 SRDCN-00060-10

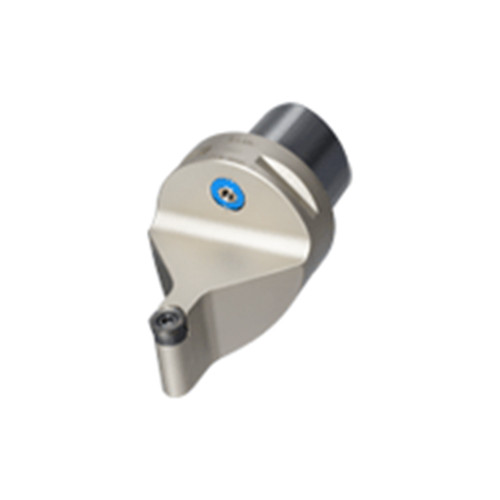

Turning Toolholder; 3.543″ OAL × 1.968″ Shank Dia. × 0.709″ LH ; Neutral ; Steel

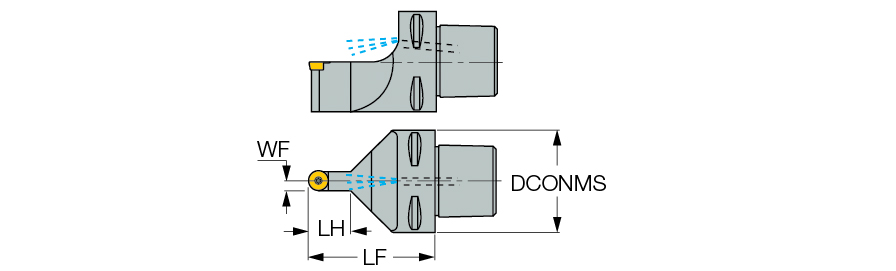

| Overall Length (OAL) | 3.543″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 2.362″ | Body Material | Steel |
| Head Length (LH) | 0.709″ | Cutting Position | External |
| Functional Width (WF) | 0.197″ | Tool Type | Tapered Shank Turning Tools |
| Connection Diameter Machine Side (DCONMS) | 1.968″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 0.394″ | Style | SCLCL08-3A |
| Cutting Direction (HAND) | Neutral | Insert Style | 2.362″ |
| Master Insert Identification (MIID) | RC.. 10T3MO |
Product Features
| Family Description | Screw lock, neutral tools for round inserts with 7° clearance angle and CAMFIX (ISO 26623-1 standard) exchangeable shanks. | Country of Origin | Israel |
Shipping Info
Package Weight
1.362
