DSSNR 20-5

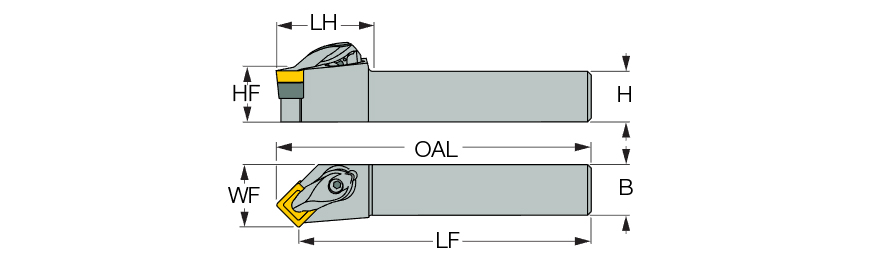

| Shank Height (H) | 1 1/4″ | Rake Angle Radial (GAMF) | -5.5 Degrees |
| Shank Width (B) | 1 1/4″ | Body Material | Steel |
| Overall Length (OAL) | 6″ | Cutting Position | External |
| Functional Length (LF) | 4″ | End Chamfer Angle (ECA) | 95 Degrees |
| Head Length (LH) | 6″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 5/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | SN.. 54 | Insert Style | 6″ |
| Rake Angle Axial (GAMP) | -5.5 Degrees |
Product Features
| Family Description | 45° lead angle R-Clamp tools carrying the negative square inserts, for longitudinal and facing applications. | Country of Origin | IL |
Shipping Info
Package Weight
2.6950
