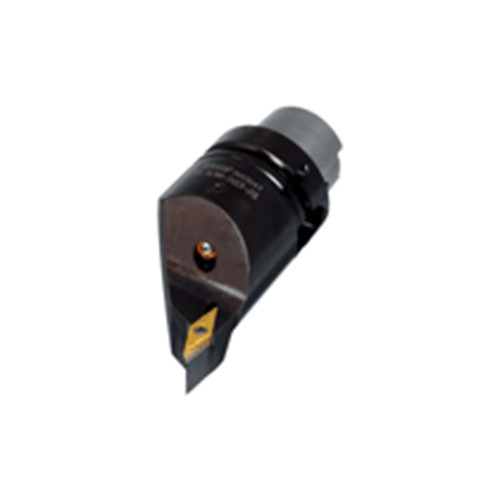

HSK A63WH-SVJCL-J16
Turning Toolholder; 5.591″ OAL × 2.48″ Shank Dia. ; Left Hand ; Steel

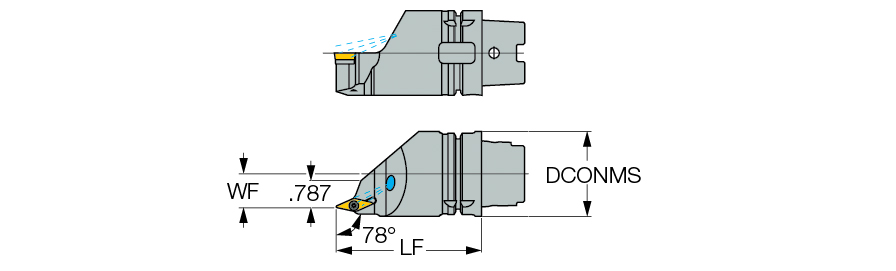

| Overall Length (OAL) | 5.591″ | Application | | Ext. 35° Diamond 93° Approach | |
| Functional Length (LF) | 4.331″ | Body Material | Steel |
| Functional Width (WF) | 0.984″ | Cutting Position | External |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | VC..33.. | Insert Style | 4.331″ |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | Screw lock tools with HSK exchangeable tapered shanks carrying positive 35° inserts, for 15° mounting on turn-mill machines. | Country of Origin | Israel |
| Remarks | Complies with ICTM standard (ISO 12164-3). A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, Click on More Info. |
Shipping Info
Package Weight
4.202
