MTJNL 16-4

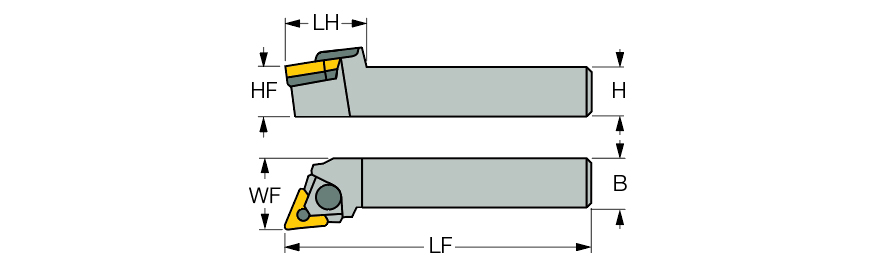

| Shank Height (H) | 1″ | Rake Angle Axial (GAMP) | -5 Degrees |
| Shank Width (B) | 1″ | Rake Angle Radial (GAMF) | -5 Degrees |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1.26″ | Cutting Position | External |
| Functional Width (WF) | 1-1/4″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | TN..4.. | Insert Style | 6″ |
| Application | | Ext. 60° Triangle 93° Approach | |
Product Features

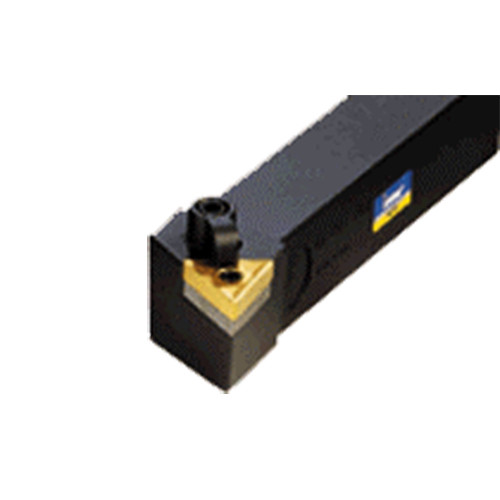

| Family Description | 93° lead angle, Comlock, turning tools, for negative triangular inserts. | Country of Origin | USA |
Shipping Info
Package Weight
1.552
