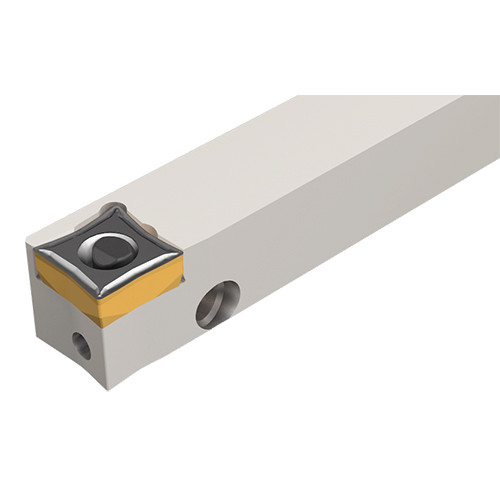

PQLCR 1212M-09S

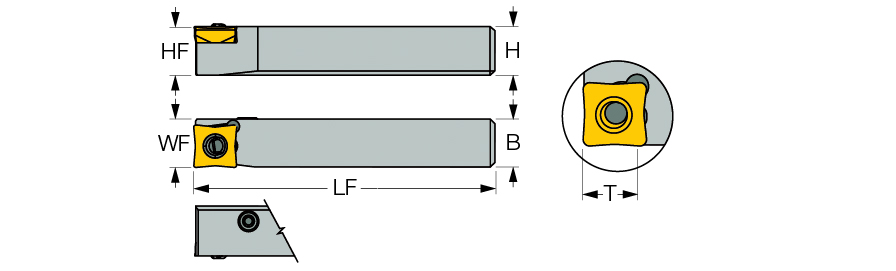

| Shank Height (H) | 12 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 12 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Functional Width (WF) | 12 mm | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 9.65 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | QCMT 09T3 | Style | SCLCL08-3A |
| Application | | Ext. 80° Q#MG 95° Approach | |
Product Features
| Family Description | Side lever lock tools carrying 80° positive 4-cornered inserts for Swiss automatic machines. | Country of Origin | Switzerland |
Shipping Info
Package Weight
0.417
