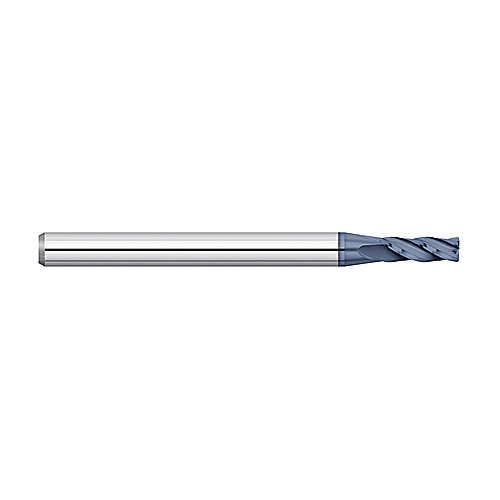

508 0.047 4F RAD0.005 EM
Corner Radius End Mill; 3/64″ Dia. × 0.141″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 3/64″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 0.141″ |
| Depth of Cut Maximum (APMX) | 0.141″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 1-1/2″ | Decimal Equivalent | 0.0469″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlTiN | Corner Radius (RE) / Chamfer Width (CHW) | 0.005″ |
| Flute Count (NOF) | 4 | Center Cutting | Yes |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.022
