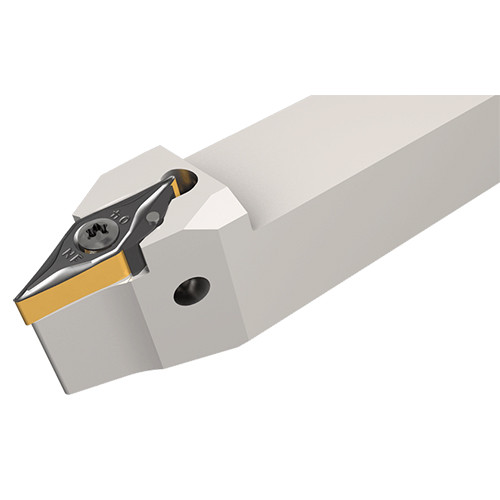

SVVNN 16-2.5F

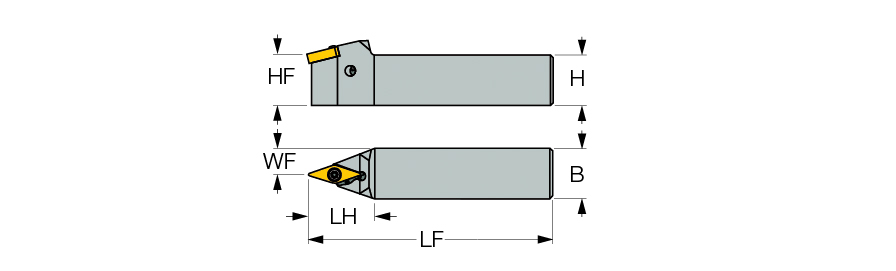

| Shank Height (H) | 1″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 1″ | Rake Angle Radial (GAMF) | -14 Degrees |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1.03″ | Cutting Position | External |
| Functional Width (WF) | 1/2″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 0.281″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | VN.. 2.5 | Insert Style | 6″ |
| Application | | Ext. 35° Diamond 72.5° Approac | |
Product Features
| Family Description | Screw lock tools with a wedge for high rigidity in profiling applications carrying 35° negative inserts. | Country of Origin | Israel |
| Remarks | Repeatability: For VNMG IS ±.0024,for VNGG IS ± .0008 |
Shipping Info
Package Weight
1.587
