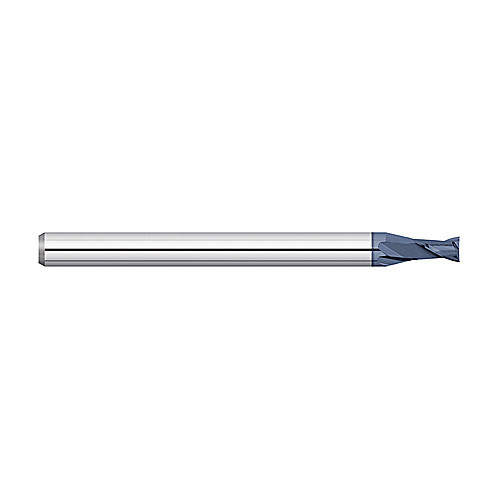

522 0.030 2F SQ MICRO STU
SQ End Mill; 0.03″ Dia. × 0.045″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 2 FL ; 0.045″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 0.03″ | Flute Helix Angle (FHA) | 30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 0.045″ | Usable Length (LU) | 0.045″ |
| Overall Length (OAL) | 1-1/2″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlTiN | Center Cutting | Yes |
| Flute Count (NOF) | 2 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.022
