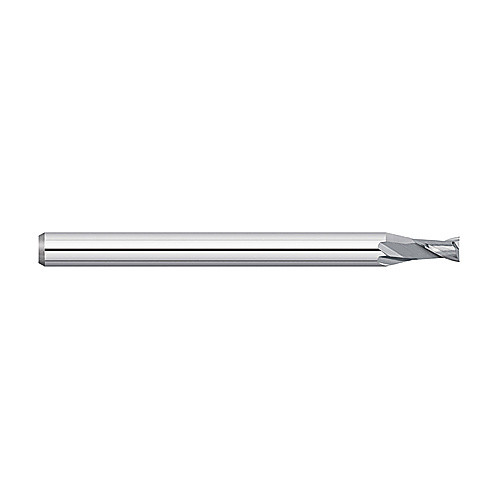

520 0.085 2F SQ MICRO STU
Square End Mill; 0.085″ Dia. × 0.128″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 2 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 0.085″ | Flute Helix Angle (FHA) | 30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 0.128″ | Usable Length (LU) | 0.128″ |
| Overall Length (OAL) | 1-1/2″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | Uncoated | Center Cutting | Yes |
| Flute Count (NOF) | 2 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.022
