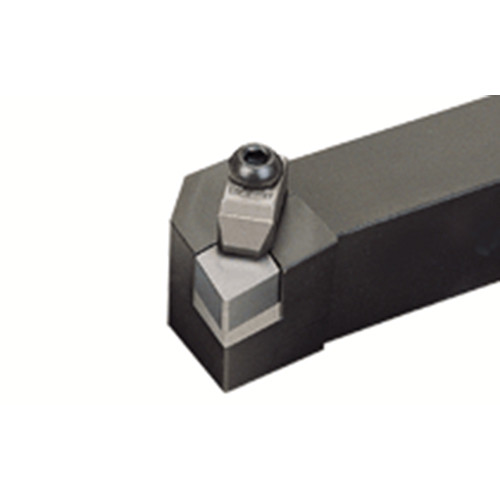

CCLNR 16-4CE

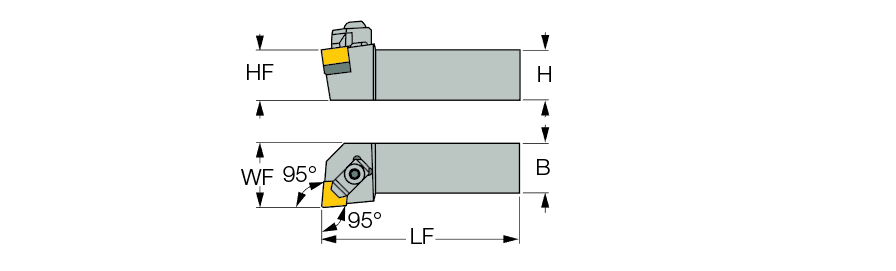

| Shank Height (H) | 1″ | Rake Angle Axial (GAMP) | -4 Degrees |
| Shank Width (B) | 1″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Functional Width (WF) | 1-1/4″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | CNG 45.. | Style | SCLCL08-3A |
| Application | | Ext. 80° Diamond 95° Approach | | Insert Style | 6″ |
Product Features
| Family Description | Clamp lock toolholders for ceramic 80° rhombic negative inserts. | Country of Origin | S.Korea |
Shipping Info
Package Weight
1.856
