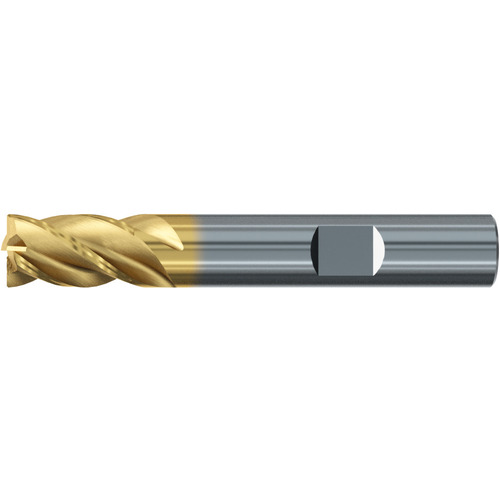

1/2″ TiNox-Cut Base - End Mill, Carbide, Stub, HB
SQ End Mill; 1/2″ Dia. × 3/4″ LOC × 1/2″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; TiAlN ; Series 2976T
| Cutting Diameter (DC) | 1/2″ | Application | | Roughing | Finishing | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Tool Type | Solid Carbide Endmill |
| Depth of Cut Maximum (APMX) | 3/4″ | Length Group | Standard |
| Overall Length (OAL) | 2-1/2″ | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5″ |
| Coating | TiAlN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 2976T |
| Flute Helix Angle (FHA) | | 35 Degrees | 37 Degrees | | Corner Radius (RE) / Chamfer Width (CHW) | 0.008″ |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Center Cutting | Yes |
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Trade Name | TiNox-Cut |
Product Features
| Remarks | • TiNox-Cut / Base, carbide end mill for roughing and finishing of stainless and acid-resistant steels • Variable spacing reduces vibrations and allows low-vibration machining • Wear resistant sub-micro grain carbide substrate • TIN/TIALN multi-layer coating for heat and wear resistance | Country of Origin | USA |
Shipping Info
Package Weight
0.279
