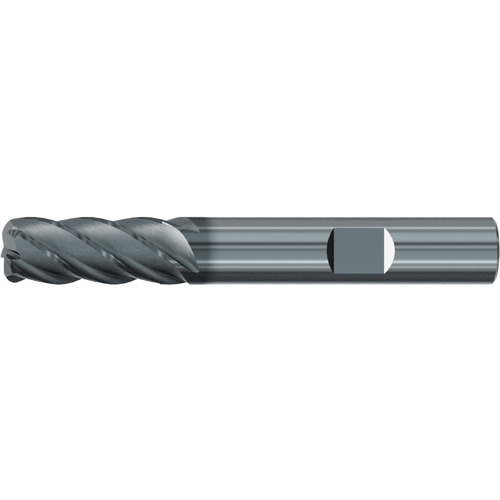

1″ Top-Cut VAR - End Mill, Carbide, 5 Flute HB - Radius 0.120
Corner Radius End Mill; 1″ Dia. × 2″ LOC × 1″ Shank Dia. × 5″ OAL ; 5 FL ; Carbide ; AlCr
| Cutting Diameter (DC) | 1″ | Application | | Finishing | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Corner Radius (RE) | 0.12″ |
| Depth of Cut Maximum (APMX) | 2″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 5″ | Length Group | Standard |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlCr | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Series/List # | 3903L |
| Flute Helix Angle (FHA) | | 35 Degrees | 38 Degrees | | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| End Shape | Corner Radius | Center Cutting | Yes |
| Applicable Material | | Universal Materials | | Trade Name | Top-CUT VAR |
Product Features
| Remarks | • TOP-Cut VAR carbide end mill with 5 flute design for roughing and finishing in almost all materials • Low-vibration machining due to variable helix flute spacing • For universal use, suitable for high speed finishing • ALCR coating for longer tool life and very good suitability for high-alloyed materials | Country of Origin | USA |
Shipping Info
Package Weight
2.038
