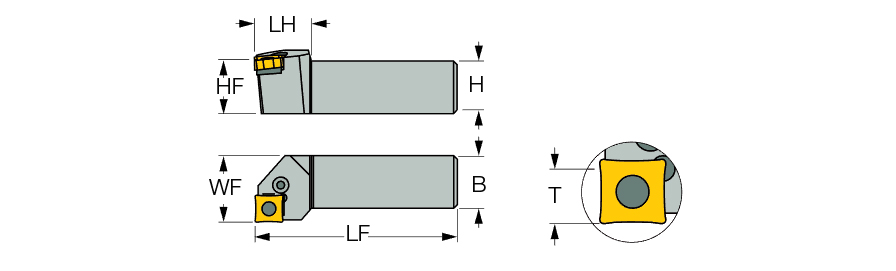

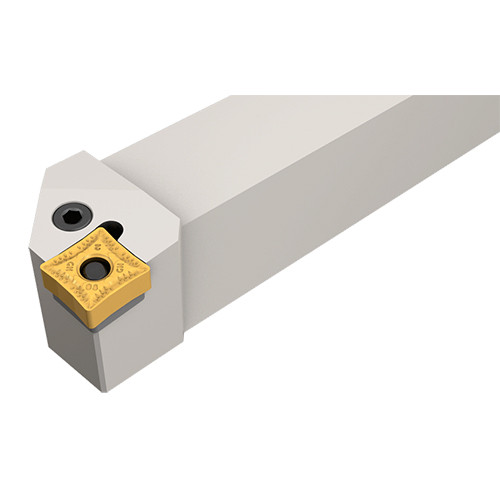

PQFNR 16-4
| Shank Height (H) | 1″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 1″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1″ | Cutting Position | External |
| Functional Width (WF) | 1-1/4″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | QNMG 4 | Insert Style | 6″ |
| Application | | Ext. 80° Q#MG 95°Approach Face | |
Product Features
| Family Description | Lever lock face turning tools carrying negative inserts with four 80° corners (AD - short tools for adapter holders). | Country of Origin | Israel |
| Remarks | For T, click on Info. |
Shipping Info
Package Weight
1.744
