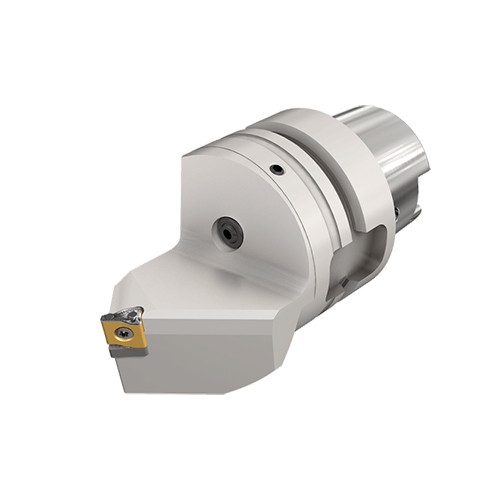

HSK A63WH-SLSNR-G15 TANG
Turning Toolholder; 4.803″ OAL × 2.48″ Shank Dia. ; Right Hand ; Steel

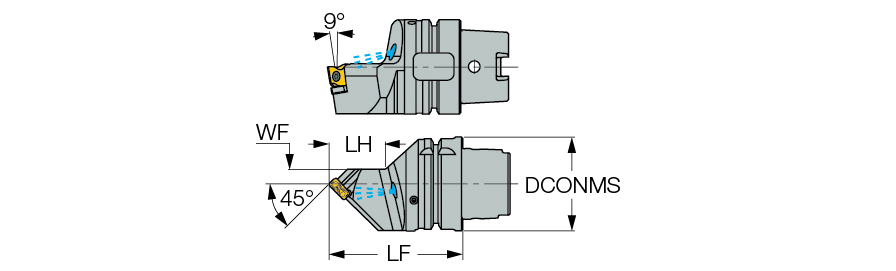

| Overall Length (OAL) | 4.803″ | Rake Angle Radial (GAMF) | 9 Degrees |
| Functional Length (LF) | 3.543″ | Body Material | Steel |
| Head Length (LH) | 1.496″ | Cutting Position | External |
| Functional Width (WF) | 0.394″ | Tool Type | Tapered Shank Turning Tools |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | LNMX 1506 | Insert Style | 3.543″ |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | HSK |
| Application | | Ext. Tangential 93° Approach | |
Product Features
| Family Description | Tools for 45° mounting, with HSK taper shanks for LNMX-HT tangentially, screw clamped inserts. Recommended for heavy-duty, high metal removal rate applications. Can be used on turn-mill machines. | Country of Origin | Israel |
| Remarks | Complies with ICTM standard (ISO 12164-3) A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, Click on More Info. |
Shipping Info
Package Weight
3.272
