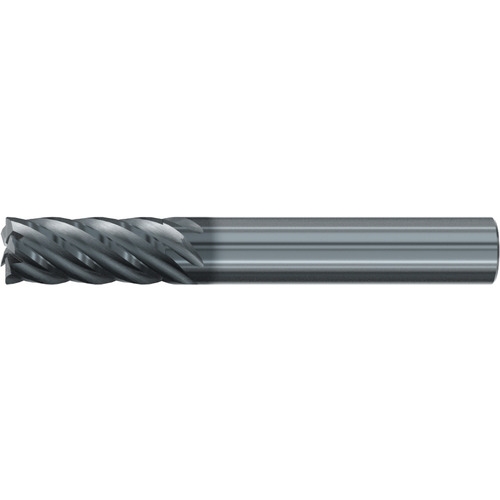

5/16″ Top-Cut VAR - End Mill, Carbide, 6 Flute
Square End Mill; 5/16″ Dia. × 13/16″ LOC × 5/16″ Shank Dia. × 2-1/2″ OAL ; 6 FL ; Carbide ; AlCr
| Cutting Diameter (DC) | 5/16″ | Application | | Finishing | |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Tool Type | Solid Carbide Endmill |
| Depth of Cut Maximum (APMX) | 13/16″ | Length Group | Standard |
| Overall Length (OAL) | 2-1/2″ | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.3125″ |
| Coating | AlCr | Measurement Type | Inch |
| Flute Count (NOF) | 6 | Series/List # | 2948L |
| Flute Helix Angle (FHA) | | 35 Degrees | 38 Degrees | | Corner Radius (RE) / Chamfer Width (CHW) | 0.005″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Center Cutting | Yes |
| Applicable Material | | Universal Materials | | Trade Name | Top-CUT VAR |
Product Features
| Remarks | • TOP-Cut VAR carbide end mill with 6 flute design for finishing milling strategies in almost all materials • Variable flute spacing for reduced vibration and improved surface finish • Suitable for trochoidal milling path applications • ALCR coating for longer tool life and can be used in high-alloyed materials | Country of Origin | USA |
Shipping Info
Package Weight
.099
